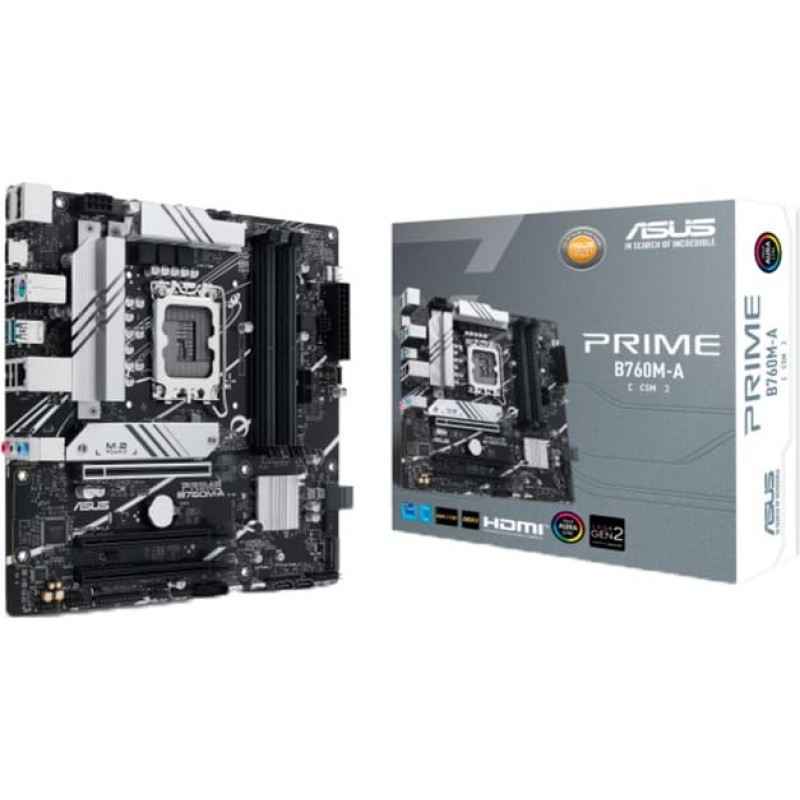

Asus PRIME B760M-A-CSM - Socket 1700 - motherboard

15 days

ID: 177296

Product Code: 90MB1EK0-M1EAYC

148.60€

(Ex Tax: 122.81€)

Leasing

Delivery options

Description

Related products

The picture is for illustrative purposes only and the actual product may differ from the picture. Notice a mistake? Please let us know.

Description

The ASUS PRIME B760M-A-CSM mainboard is based on the Intel® B760 chipset and supports Intel® processors for the socket 1700. It has four DDR5 DIMM slots in dual-channel operation for up to 192 GB of RAM. The ASUS PRIME B760M-A-CSM also features three PCIe 4.0 x16 slots. The ASUS PRIME B760M-A-CSM also has 8-channel sound, a 2.5 Gigabit LAN interface, four SATA3 ports, two M.2 ports and a range of USB interfaces. Item no.: 100019983

Mainboard type
Color black/silver
EAN4711387140710
Manufacturer No. 90MB1EK0-M1EAYC
Base 1700
Max. supported CPUs 1
Processor Supported Models Core i3 12xxx (Alder Lake), Core i3 12xxxT (Alder Lake), Core i3 12xxxF (Alder Lake), Core i3 13xxx (Raptor Lake), Core i3 13xxxF (Raptor Lake), Core i3 13xxxT (Raptor Lake), Core i3 14xxx (Raptor Lake-S), Core i3 14xxxF (Raptor Lake-S), Core i3 14xxxT (Raptor Lake-S), Core i5 12xxx (Alder Lake), Core i5 12xxxK (Alder Lake), Core i5 12xxxKF (Alder Lake), Core i5 12xxxT (Alder Lake), Core i5 12xxxF (Alder Lake), Core i5 13xxx (Raptor Lake), Core i5 13xxxF (Raptor Lake), Core i5 13xxxT (Raptor Lake), Core i5 13xxxK (Raptor Lake), Core i5 13xxxKF (Raptor Lake), Core i5 14xxx (Raptor Lake-S), Core i5 14xxxF (Raptor Lake-S), Core i5 14xxxK (Raptor Lake-S), Core i5 14xxxKF (Raptor Lake-S), Core i5 14xxxT (Raptor Lake-S), Core i7 12xxx (Alder Lake), Core i7 12xxxK (Alder Lake), Core i7 12xxxKF (Alder Lake), Core i7 12xxxT (Alder Lake), Core i7 12xxxF (Alder Lake), Core i7 13xxx (Raptor Lake), Core i7 13xxxF (Raptor Lake), Core i7 13xxxT (Raptor Lake), Core i7 13xxxK (Raptor Lake), Core i7 13xxxKF (Raptor Lake), Core i7 14xxx (Raptor Lake-S), Core i7 14xxxF (Raptor Lake-S), Core i7 14xxxK (Raptor Lake-S), Core i7 14xxxKF (Raptor Lake-S), Core i7 14xxxT (Raptor Lake-S), Core i9 12xxx (Alder Lake), Core i9 12xxxK (Alder Lake), Core i9 12xxxKF (Alder Lake), Core i9 12xxxT (Alder Lake), Core i9 12xxxF (Alder Lake), Core i9 12xxxKS (Alder Lake), Core i9 13xxx (Raptor Lake), Core i9 13xxxF (Raptor Lake), Core i9 13xxxT (Raptor Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxKF (Raptor Lake), Core i9 13xxxKS (Raptor Lake), Core i9 14xxx (Raptor Lake-S), Core i9 14xxxF (Raptor Lake-S), Core i9 14xxxK (Raptor Lake-S), Core i9 14xxxKF (Raptor Lake-S), Core i9 14xxxKS (Raptor Lake-S), Core i9 14xxxT (Raptor Lake-S), Pentium Gold Gxxxx (Alder Lake), Celeron Gxxxx (Alder Lake)
Chipset Intel® B760
Slots PCIe x16 3x (of which: 1x PCIe x16, 1x PCIe x4, 1x PCIe x1)
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
TPM Yes
Form factor µATX
Use PC
Power supply ATX12V (24-pin + 8-pin)
Maximum storage 192 GB
Connections (external) Mouse/Keyboard Combo (PS/2) 1
Connectors (internal) SATA 4
Ports (optional) USB 3.2 Gen 1 (5 Gbit/s) 4
RGB Standard AURA Sync
SATA Controller Intel® B760
directly usable RAID levels 0, 1, 10, 5
USB Controller Intel® B760
Onboard graphics The graphics ports on the mainboard can only be used when using a CPU with an integrated graphics chip.
Sound Realtek 7.1 Surround Sound High Definition
LAN Realtek 2.5Gb Ethernet
Further information To support the latest processor cores, a BIOS update may be required.
Dimensions Width: 244 mm x Height: 244 mm x Depth/Length: 36 mm
Weight 690 grams

Weight	1.09
Height	55
Length	270
Width	260
