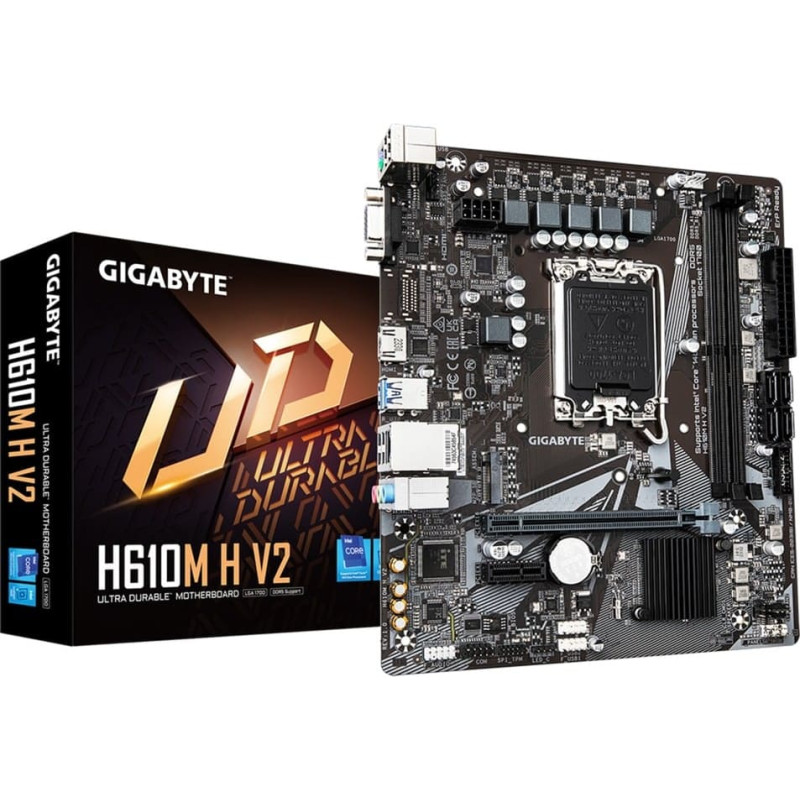

Gigabyte H610M H V2 - Socket 1700 - motherboard

15 days

ID: 162328

Product Code: H610M H V2

72.67€

(Ex Tax: 60.05€)

Leasing

Delivery options

Description

Related products

The picture is for illustrative purposes only and the actual product may differ from the picture. Notice a mistake? Please let us know.

Description

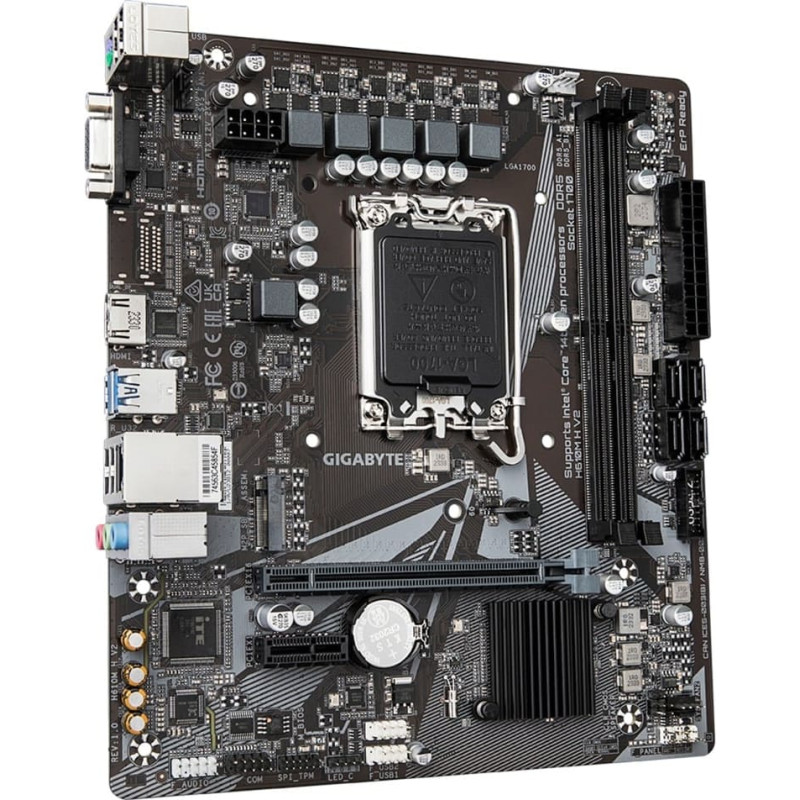

The GIGABYTE H610M H V2 motherboard is based on the Intel® H610 chipset and supports Intel® processors for Socket 1700. It has two DDR5 DIMM slots in dual-channel operation for up to 96 GB of RAM. The GIGABYTE H610M H V2's additional features include a PCIe 4.0 x16 slot and a PCIe 3.0 x1 slot. The GIGABYTE H610M H V2 also has 8-channel sound, a Gigabit LAN interface, four SATA3 ports and a number of USB interfaces. Item no.: 100038234

Mainboard type
EAN 4719331859985
Manufacturer no. H610M H V2
Base 1700
Max. supported CPUs 1
Operating system support Windows 10 ready, Windows 11 ready
Processor Supported models Core i3 12xxx (Alder Lake), Core i3 12xxxT (Alder Lake), Core i3 12xxxF (Alder Lake), Core i3 13xxx (Raptor Lake), Core i3 13xxxF (Raptor Lake), Core i3 13xxxT (Raptor Lake) , Core i5 12xxx (Alder Lake), Core i5 12xxxK (Alder Lake), Core i5 12xxxKF (Alder Lake), Core i5 12xxxT (Alder Lake), Core i5 12xxxF (Alder Lake), Core i5 13xxx (Raptor Lake), Core i5 13xxxF (Raptor Lake), Core i5 13xxxT (Raptor Lake), Core i5 13xxxK (Raptor Lake), Core i5 13xxxKF (Raptor Lake), Core i5 14xxx (Raptor Lake-S), Core i5 14xxxF (Raptor Lake-S) , Core i5 14xxxK (Raptor Lake-S), Core i5 14xxxKF (Raptor Lake-S), Core i5 14xxxT (Raptor Lake-S), Core i7 12xxx (Alder Lake), Core i7 12xxxK (Alder Lake), Core i7 12xxxKF (Alder Lake), Core i7 12xxxT (Alder Lake), Core i7 12xxxF (Alder Lake), Core i7 13xxx (Raptor Lake), Core i7 13xxxF (Raptor Lake), Core i7 13xxxT (Raptor Lake), Core i7 13xxxK (Raptor Lake), Core i7 13xxxKF (Raptor Lake), Core i7 14xxx (Raptor Lake-S), Core i7 14xxxF (Raptor Lake-S), Core i7 14xxxK (Raptor Lake-S), Core i7 14xxxKF (Raptor Lake-S) , Core i7 14xxxT (Raptor Lake-S), Core i9 12xxx (Alder Lake), Core i9 12xxxK (Alder Lake), Core i9 12xxxKF (Alder Lake), Core i9 12xxxT (Alder Lake), Core i9 12xxxF (Alder Lake) , Core i9 12xxxKS (Alder Lake), Core i9 13xxx (Raptor Lake), Core i9 13xxxF (Raptor Lake), Core i9 13xxxT (Raptor Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxKF (Raptor Lake), Core i9 13xxxKS (Raptor Lake), Core i9 14xxx (Raptor Lake-S), Core i9 14xxxF (Raptor Lake-S), Core i9 14xxxK (Raptor Lake-S), Core i9 14xxxKF (Raptor Lake-S), Core i9 14xxxT (Raptor Lake-S), Pentium Gold Gxxxx (Alder Lake), Celeron Gxxxx (Alder Lake)
Chipset Intel® H610
Slots PCIe x16 1x (of which: 1x PCIe x16)
TPM Yes
BIOS 256 Mbit UEFI AMI BIOS
Form factor µATX
Use PC
Power supply ATX12V (24-pin + 8-pin)
Memory maximum 96 GB
Connections (external) Keyboard (PS/2) 1
Connectors (internal) SATA 4
Ports (optional) USB 3.2 Gen 1 (5 Gbit/s) 2
RGB Standard AURA Sync
SATA controller Intel® H610
USB controller Intel® H610
Onboard graphics The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip.
Sound Realtek Audio CODEC
LAN Intel® GbE LAN
Further information In order to support the latest processor cores, a BIOS update may be required.
Dimensions Width: 197mm x Height: 188mm

Weight	0.70
Height	235
Length	270
Width	55
