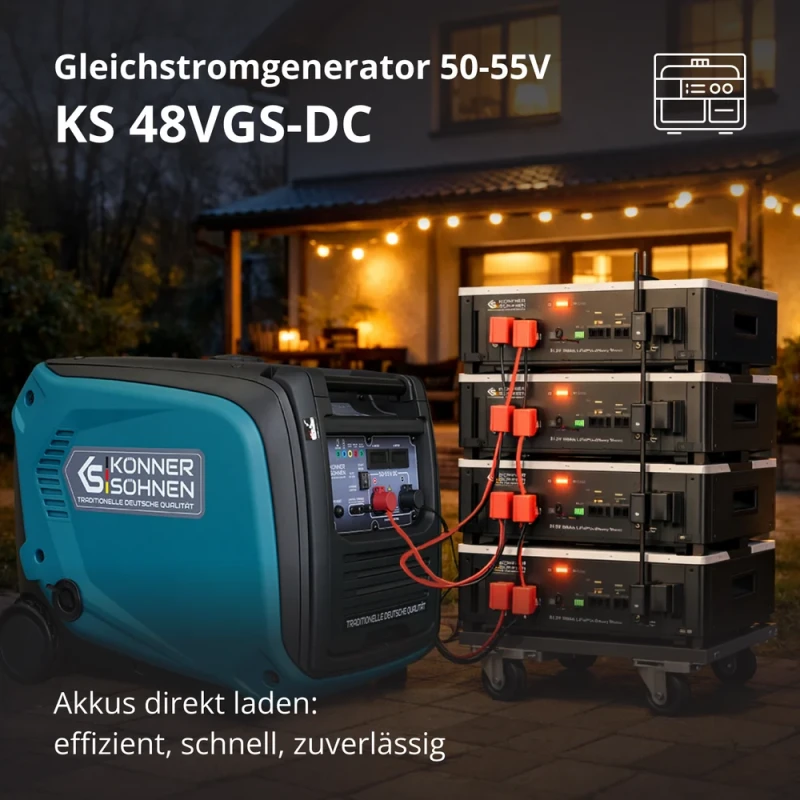

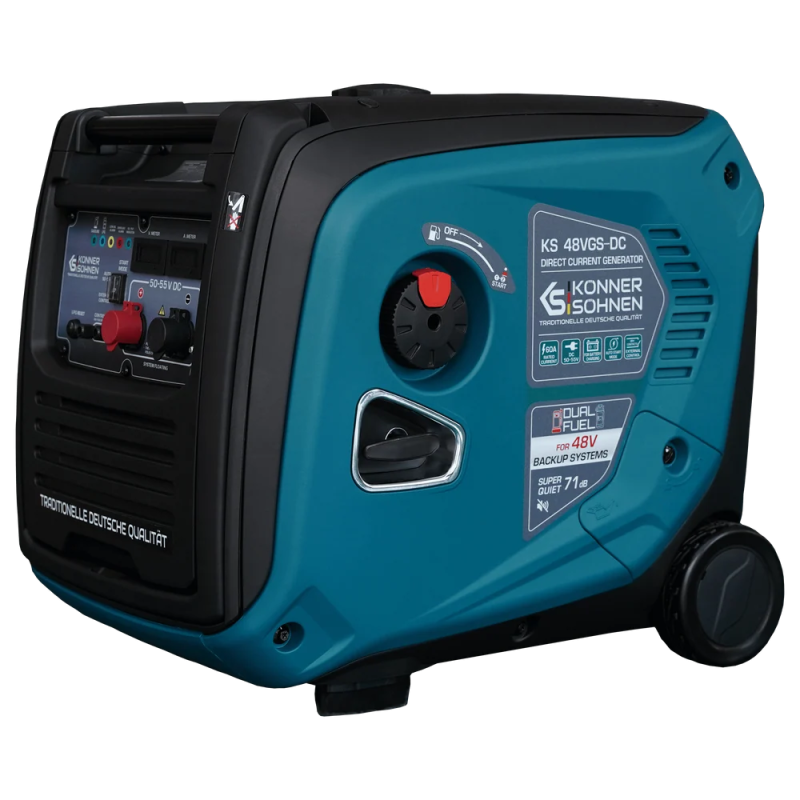

Description: Könner & Söhnen KS 48VGS-DC is a petrol/LPG dual-fuel DC generator and backup charger for 50–55 V battery systems. It delivers 3.3 kW rated power and a maximum current of 60 A. In AUTO mode, the unit starts automatically when battery voltage drops below 50 V and stops at 54.5 ± 0.5 V when current is below 20 A. External control is provided through dry contacts, while automatic and external control are available when operating on petrol. The model features a soundproof housing, an LED display for output voltage and current, and a KS 240i four-stroke petrol engine.
| Parameter | Value |
| Parameter | Value |
| Product type | Petrol/LPG dual-fuel DC generator and backup charger |
| Brand | Könner & Söhnen |
| Model / SKU | KS 48VGS-DC |
| Battery system range | 50–55 V |
| Fuel type | Petrol / LPG |
| Rated power | 3.3 kW |
| Maximum current | 60 A |
| Fuel tank capacity | 12 L |
| LED display | Output voltage and current |
| Noise level Lpa/Lwa | 71/96 dB |
| Engine model | KS 240i |
| Engine type | 4-stroke petrol engine |
| Engine power | 7.5 hp |
| Oil capacity | 0.6 L |
| Engine displacement | 223 cm³ |
| Starting and control on petrol | Automatic and external control |
| AUTO mode start condition | Battery voltage below 50 V |
| AUTO mode stop condition | At 54.5 ± 0.5 V when current is below 20 A |
| External control | Through dry contacts |
| Housing | Soundproof |
| Protection class | IP23M |
| Included | Generator, manual, screwdriver, spark-plug wrench, accessory bag, oil funnel, spare fuse, control-contact cable, 2 × 48 V power cables, 1.5 m LPG hose with regulator |
| Gross dimensions | 715 × 490 × 595 mm |
| Net weight | 39 kg |
| Gross weight | 46 kg |
| EAN | 4260405365838 |
