KONNER&SOHNEN

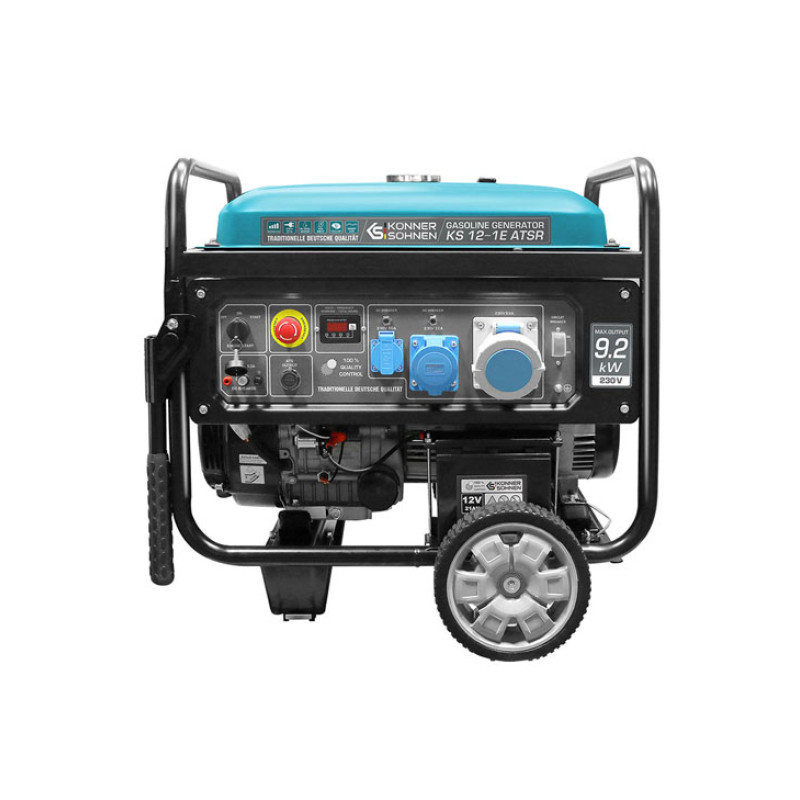

Gasoline generator 9200W, KS 12-1E ATSR, KÖNNER & SÖHNEN

Ask for availability
ID: 12988
Product Code: KS-12-1E-ATSR
Barcode 4260405363414

1,946.55€
(Ex Tax: 1,608.72€)

Leasing


Delivery options

 Imagem    ImagemImagem

The picture is for illustrative purposes only and the actual product may differ from the picture. Notice a mistake? Please let us know.

Specification
Fuel type: Petrol
Maximum power, W: 9200
Nominal power, W: 9000
Voltage, V: 230
Starter: Manual/electric
Fuel tank capacity, l: 55
Automatic starting unit: Connectable

Description

The KÖNNER & SÖHNEN  KS 12-1E ATSR petrol generator is a powerful, simple, and reliable machine. It can be connected to an ATS (Automatic Transfer Switch) system, which allows the generator to start automatically when the main power supply is cut off. The generator boasts a powerful single-cylinder engine that provides maximum power output. It also features an intuitive control panel with an emergency stop button and a multi-function LED display that allows you to monitor the operation, including voltage, run time, and oil level. The generator is equipped with reliable fuses for optimum use of energy.

With a large 55-litre fuel tank, the generator ensures longer running times without frequent refueling and has a built-in fuel level indicator. The generator also has a robust 18.5 hp engine that is economical, quiet, and meets European environmental standards. Each engine is uniquely identified to ensure quality.

The generator has an easy start system with an electric start option, and it also has an overhead valve motor (OHV) which improves durability, and efficiency and reduces noise. It is equipped with a high-grade 100% copper winding for durability under heavy loads and reliable long-term operation.

This generator is excellent for powering your needs effortlessly and efficiently. It combines power, ease of use, and reliability, and is designed to be your go-to machine for all your power needs.


Technical specification

Engine Type                                                           Gasoline powered one-cylinder, four-stroke air-cooled
Engine ModelKS 650
Engine Power (hp/kW)18.5 / 13.6
Max Power (kW)9.2
Nominal Power (kW)9.0
Voltage (V)230
Frequency (Hz)50
Max Current (A)40
Outlets1 x Schuko 230 V, 1 x CEE 230 V 32 A, 1 x CEE 230 V 63 A
Fuel Tank Volume (l)55
Accumulator (A·h)21
Noise Level Lpa (7m) / Lwa (dB)71 / 96
Crank Case Volume (l)1.4
Engine Cylinder Volume (cm³)625
Alternator WindingCopper
Power Output ControllerIntelligent voltage stabilization system AVR
Engine StartManual/electric
Power Output DC (V/A)12 / 8.3
LED DisplayVoltage, frequency, working hours, oil alarm
Net Weight (kg)120
Dimensions (LxWxH, mm)790x705x680
Protection ClassIP23M
Image Product Name Unit Price Product Code Availability Quantity
Universal motor oil 1l, KS 10W-30 OIL, KÖNNER & SÖHNEN Universal motor oil 1l, KS 10W-30 OIL, KÖNNER & SÖHNEN 17.42€ KS-10W-30-OIL
In Stock
Automatic Transfer Switch ATS Block 4-32/12, KÖNNER & SÖHNEN​​​​​​​  Automatic Transfer Switch ATS Block 4-32/12, KÖNNER & SÖHNEN​​​​​​​  217.55€ KS-ATS-4-32/12
Ask for availability
Cover 740х650х550 (KS7000, KS9000, KS8000, KS10000), KÖNNER & SÖHNEN Cover 740х650х550 (KS7000, KS9000, KS8000, KS10000), KÖNNER & SÖHNEN 18.05€ KS-cover-20
In Stock
