The picture is for illustrative purposes only and the actual product may differ from the picture. Notice a mistake? Please let us know.
Specification
Fuel type: Diesel
Maximum power, W: 6500/7500
Nominal power, W: 6000/7000
Voltage, V: 230/400
Starter: Electric
Fuel tank capacity, l: 20
Automatic starting unit: Connectable
Description

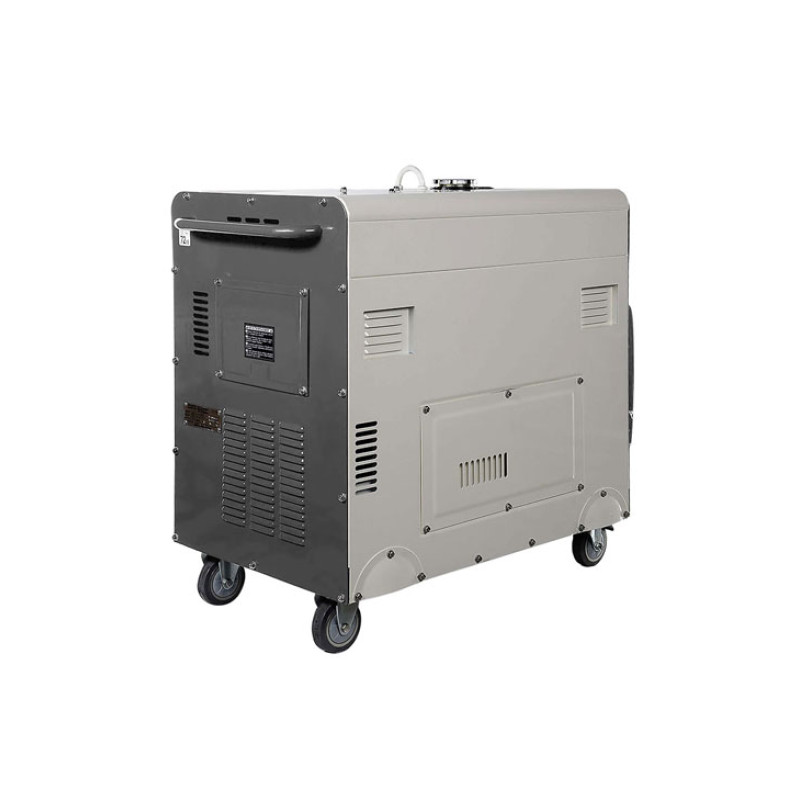

The Könner & Söhnen KS 9200HDES-1/3 ATSR diesel generator (EURO V) offers outstanding durability and ecological use following EURO V emission standards. Developed following DIMAX Int. GmbH license. All versions of the model have motors capable of producing the specified voltage and maintaining its stability and overall voltage ranges. This is possible thanks to the power reserve of the motor with the generator.
Each unit has been thoroughly tested and assigned a unique serial number to ensure quality.
It is equipped with a voltage transfer switch (VTS) system that switches seamlessly between single-phase (230 V) and three-phase (400 V) modes without significant power loss, each with automatic protection. The generator can be connected to an external ATS (Automatic Transfer Switch) system, which ensures an uninterrupted power supply during interruptions.
A pre-start heating function equips it for safe operation in winter, while its noise-damping, vandal-proof housing with transport wheels improves mobility and durability. This makes the KS 9200HDES-1/3 ATSR the most suitable choice for versatile, reliable, and environmentally friendly power supply needs.
Technical specification
| Engine Type | Diesel-powered one-cylinder, four-stroke air-cooled |
| Fuel Type | Diesel |
| Engine Model | KS 520HD-V |
| Engine Power (hp/kW) | 18.0 / 13.24 |
| Max/Nominal Power (230V), kW | 6.5/6.0 |
| Max/Nominal Power (400V), kW | 7.5/7.0 |
| Voltage (V) | 230/400 |
| Frequency (Hz) | 50 |
| Current (max.) 230/400 V, A | 28.26/13.54 |
| Outlets | 1 x CEE 230 V 32 A, 1 x CEE 400 V 16 A |
| Fuel Tank Volume (l) | 20 |
| Crank Case Volume (l) | 1.65 |
| Avg. Working Time (at 50% Power, h) | 11.1 |
| Engine Cylinder Volume (cm³) | 498 |
| Accumulator (A·h) | 30 |
| Noise Level Lpa (7m) / Lwa (dB) | 69 / 94 |
| Power Output Controller | Intelligent voltage stabilization system AVR |
| Engine Start | Electric |
| Power Output DC (V/A) | 12 / 8.3 |
| Output for ATS | + |
| LED Display | Voltage, frequency, working hours, |
| Weight (kg) | 168 |
| Dimensions (LxWxH, mm) | 900x545x905 |
| Protection Class | IP23M |
Automatic Transfer Switch KS ATS 4/63HD, KÖNNER & SÖHNEN
Product Code: KS-ATS-4/63HD
In Stock
274.55€
