The picture is for illustrative purposes only and the actual product may differ from the picture. Notice a mistake? Please let us know.

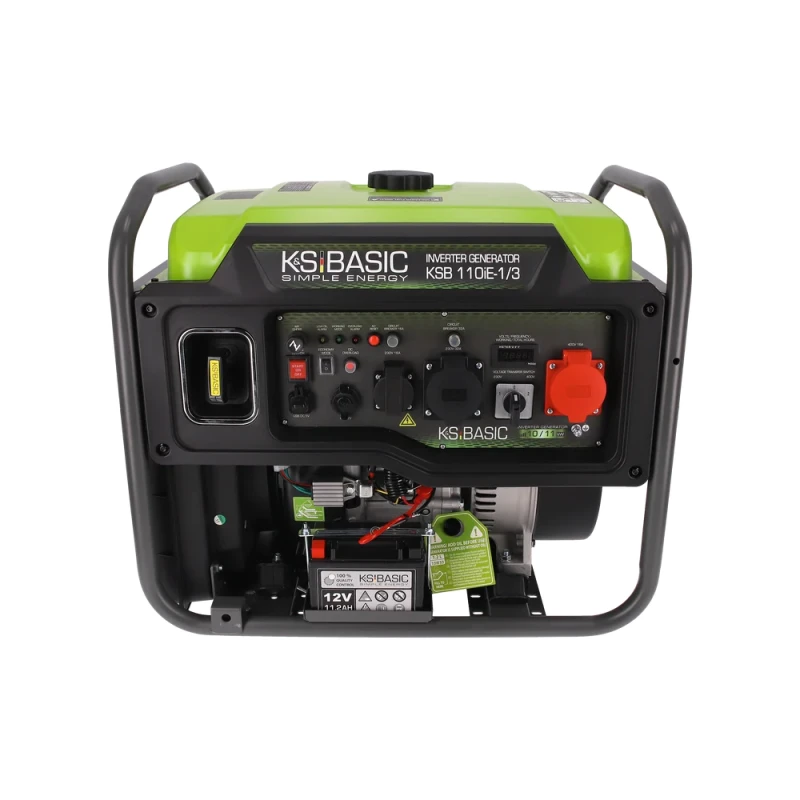

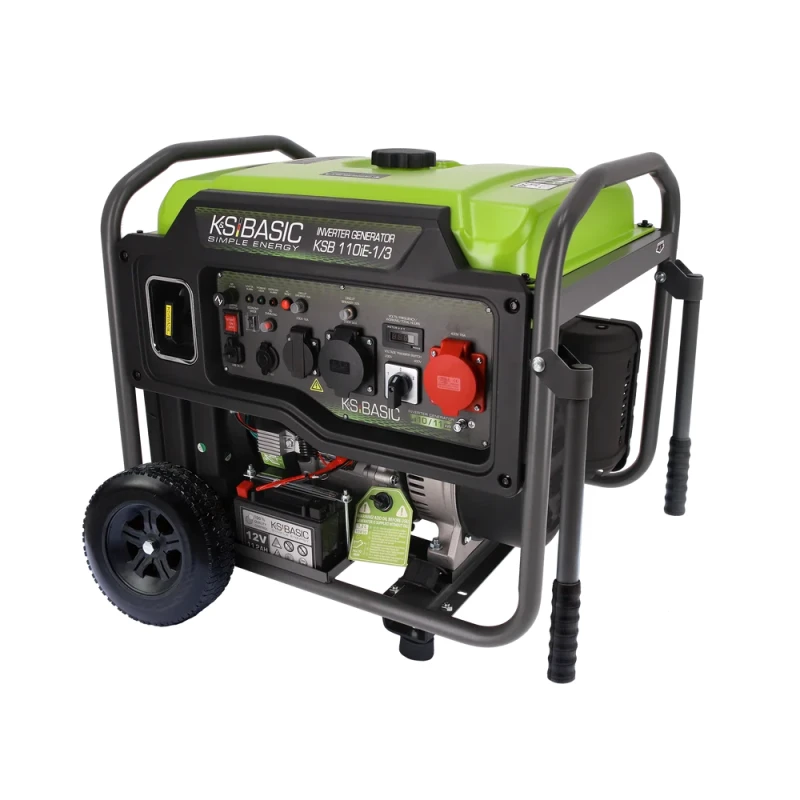

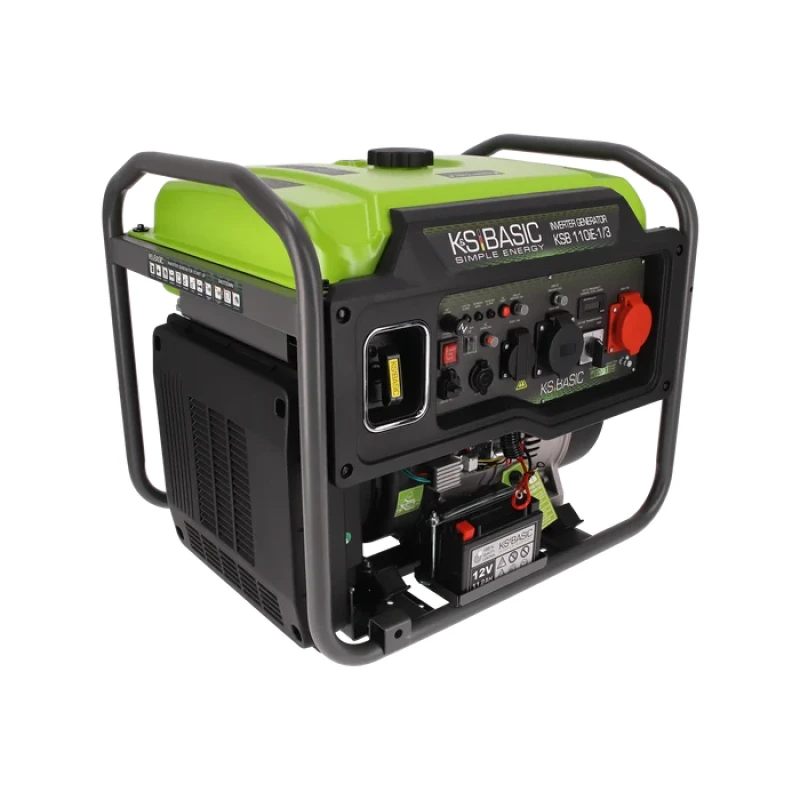

KSB 110iE-1/3 is an inverter generator with 230/400 V output, 11,0 kW maximum and 10,0 kW nominal power in both 230V and 400V modes. Inverter technology provides a clean sine wave, while the VTS system supports single-phase and three-phase operation without power loss. It features manual/electric starting, an LED display, USB 3.0 + Type C and a 40 l fuel tank.
| Product type | Inverter generator |
| Model | KSB 110iE-1/3 |
| Voltage, V | 230/400 |
| Maximum power, kW | 11,0 (230V/400V) |
| Nominal power, kW | 10,0 (230V/400V) |
| Power factor, cosφ | 1 (230 V) / 0,8 (400 V) |
| Frequency, Hz | 50 |
| Maximum current, A | 47.83 / 19.85 |
| Engine start | Manual/Electric |
| Fuel tank capacity, l | 40 |
| LED display | Voltage, frequency, operating hours |
| Noise level Lpa (7m)/Lwa, dB | 70/95 |
| DC output, V/A | 12/8.3 |
| USB outputs | USB 3.0 + Type C |
| Engine model | KSB 530i |
| Engine displacement, cm3 | 520 |
| Engine type | Petrol 4-stroke cycle |
| Engine power, hp | 20 |
| Crankcase capacity, l | 1.2 |
| Battery (A·h) | 11.2 |
| Protection class | IP23M |
| Net dimensions (LxWxH), mm | 680×550×585 |
| Gross dimensions (LxWxH), mm | 810×570×600 |
| Net weight, kg | 84 |
| Gross weight, kg | 86.0 |
| SKU | KSB 110iE-1/3 |
| Barcode | 4260405369362 |
Important: The product is supplied without engine oil or petrol. Before first start, add engine oil for four-stroke petrol engines; 10W-30 or 10W-40 is recommended. Use unleaded petrol with an octane rating of 90–95 and no more than 10% ethanol.
