Home Computer equipment Computers (NUC) Shuttle XPC slim DS50U5, Barebone (black, without operating system)

Shuttle XPC slim DS50U5, Barebone (black, without operating system)

15 days

ID: 149746

Product Code: DS50U5

Brand: SHUTTLE

692.84€

(Ex Tax: 572.60€)

Leasing

Delivery options

Description

Related products

The picture is for illustrative purposes only and the actual product may differ from the picture. Notice a mistake? Please let us know.

Description

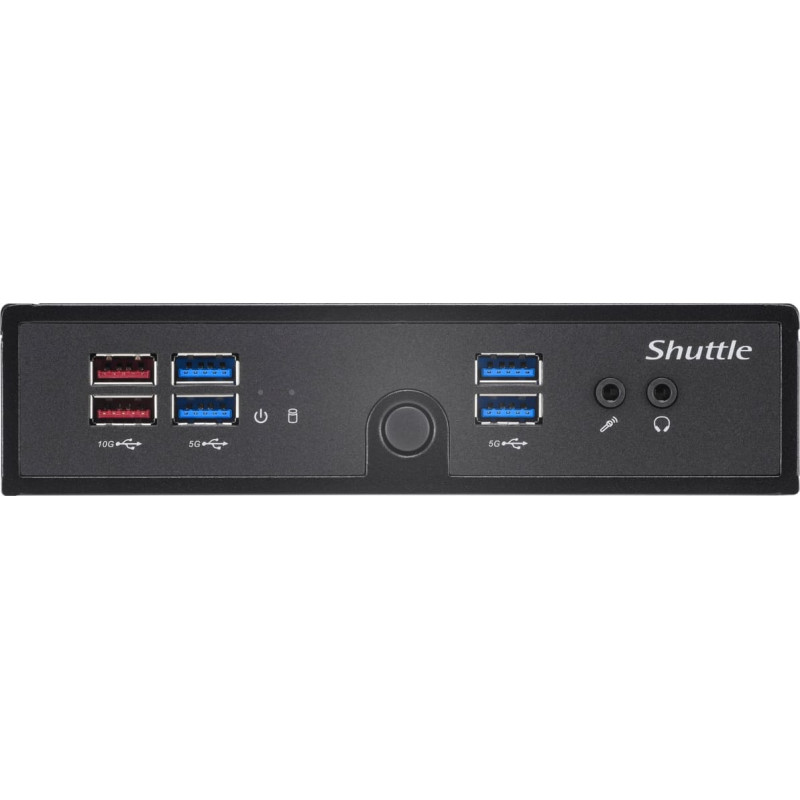

The Shuttle XPC slim DS50U5 is a slim, fanless barebone PC in a robust metal housing with universal connection options. The soldered Intel® Core™ i5-1335U processor offers enough performance for playing 2160p/60 videos in 4K resolution. Two digital connections for UHD displays and a traditional VGA port are available. Components are easy to install: two DDR5 memory modules, a 2.5" drive and two M.2-2280 SSD cards can be accommodated behind the practical housing cover. A 4G/5G module can also be optionally integrated into the second M.2 slot using the WWN04 adapter kit. Thanks to completely passive cooling, the system is practically maintenance-free, suitable for 24/7 continuous operation and also very economical. It is ideal for professional applications such as digital signage, POS, control, office or as a media PC.Art. no.: 100058812

Type Barebone
Color black
EAN-0887993006185
Manufacturer No. DS50U5
XPC slim series
Housing Drive bays 2.5" internal 1
optional WLAN kit (WLN-M1), 4G/5G kit (WWN04), rackmount kit (PRM01), cable for external power button (CXP01), kit for top hat rail/DINRail (DIR01), second RS232 COM port (PCP11)
Processor Architecture Raptor Lake
Memory capacity max. supported 64 GB DDR5 (of which 64 GB replaceable)
Graphics type Intel® Iris® Xe Graphics suitable
Mainboard connections graphics 1x VGA, 1x DisplayPort-Out (DisplayPort Version: 1.4), 1x HDMI-Out
Optical drive type not available
Audio connections 1x microphone, 1x headphone
Connectivity LAN LAN 10/100/1000 MBit/s, LAN 2.5 Gigabit
Power supply type external
Operating system without operating system
Protection features Anti-theft Kensington cable lock socket
More information 1.3L enclosure | Compatible with Windows 10/11 (64-bit) and Linux (64-bit) | Two M.2-2280M slots: 1) supports one M.2 SSD card with PCIe 4.0 x4 NVMe, 2) supports one M.2 SSD card with SATA or 4G/5G kit (WWN04)
Note This barebone system does not include memory, SSD/hard drive, CD/DVD drives and operating system.
Accessories available Multilingual installation instructions, 2 metal feet with four M3 x 7 mm screws, VESA mount for 75/100 mm standard (two metal brackets), 4 M3 x 7 mm screws (connects VESA mount to PC), 4 M4 x 10 mm screws (connects VESA mount to external mount), 2 M3 x 5 mm screws for mounting a 2.5" drive, 2 M3 x 5 mm screws for mounting M.2 cards, 4x thermal pad for cooling optional components (2x for M.2 SSD card (approx. 70 x 20 x 4 mm), 2x for RAM module (approx. 50 x 15 x 2 mm and 60 x 20 x 1 mm)), driver DVD for Windows, external 90W power supply with power cable (with protective contact)
Dimensions Width: 165 mm x Height: 39.5 mm x Depth/Length: 200 mm
Weight 1.6 kg

Weight	2.85
Height	245
Length	140
Width	260
