Home Computer equipment Computer components Mainboards For Intel CPUs Gigabyte Z790 D AX - Socket 1700 - motherboard

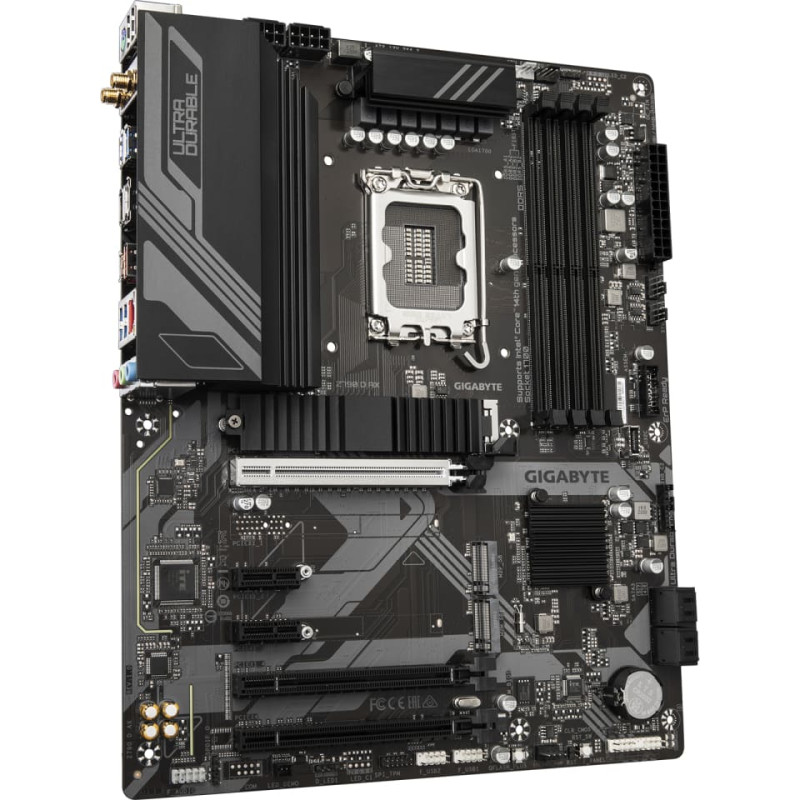

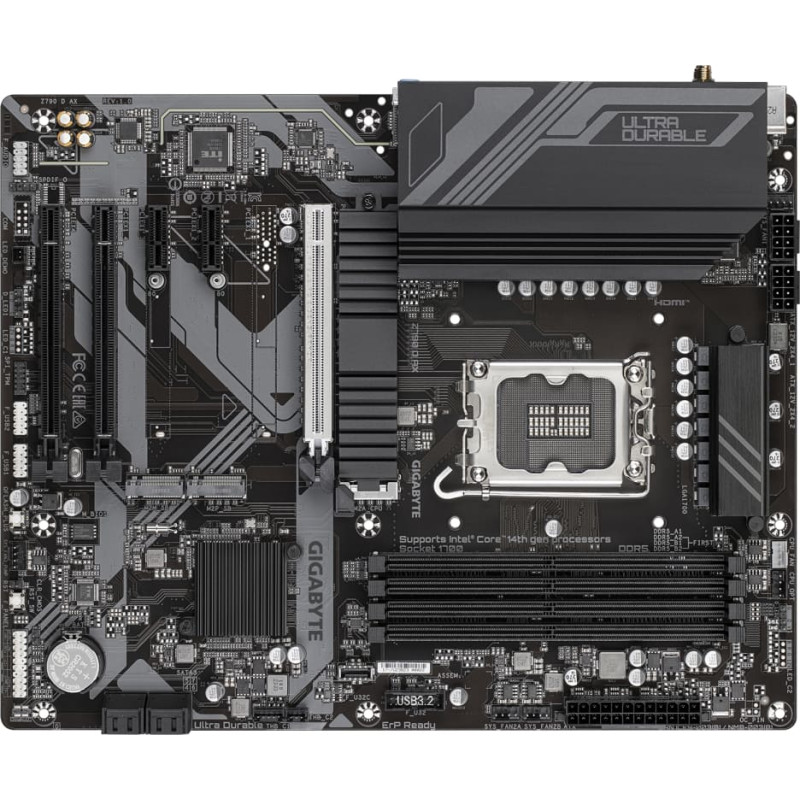

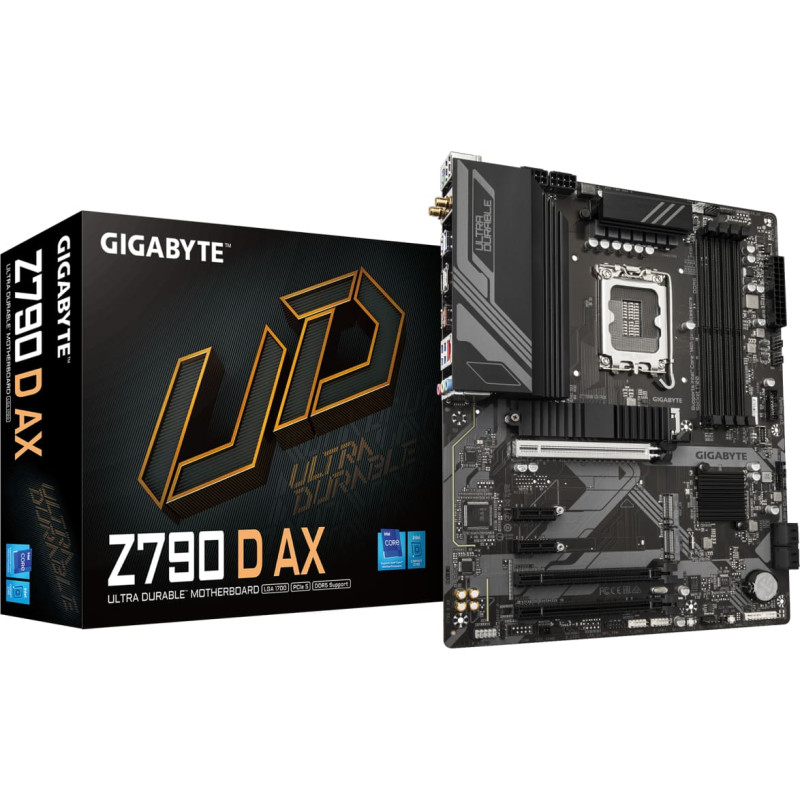

Gigabyte Z790 D AX - Socket 1700 - motherboard

15 days

ID: 149080

Product Code: Z790 D AX

184.37€

(Ex Tax: 152.37€)

Leasing

Delivery options

Description

Related products

The picture is for illustrative purposes only and the actual product may differ from the picture. Notice a mistake? Please let us know.

Description

The GIGABYTE Z790 D AX motherboard is based on the Intel® Z790 chipset and supports Intel® processors for Socket 1700. It has four DDR5 DIMM slots in dual-channel operation for up to 192 GB of RAM. The GIGABYTE Z790 D AX's additional features include a PCIe 5.0 x16 slot, a PCIe 4.0 x16 slot, a PCIe 3.0 x16 slot and two PCIe 3.0 x1 slots. The GIGABYTE Z790 D AX also has 8-channel sound, a 2.5 Gigabit LAN interface, WiFi 6E, six SATA3 ports, three M.2 ports and a number of USB interfaces. Item no.: 100046457

Mainboard type
EAN 4719331860592
Manufacturer no. Z790 D AX
Base 1700
Max. supported CPUs 1
Operating system support Windows 10 ready, Windows 11 ready
Processor Supported models Core i3 12xxx (Alder Lake), Core i3 12xxxT (Alder Lake), Core i3 12xxxF (Alder Lake), Core i3 13xxx (Raptor Lake), Core i3 13xxxF (Raptor Lake), Core i3 13xxxT (Raptor Lake) , Core i5 12xxx (Alder Lake), Core i5 12xxxK (Alder Lake), Core i5 12xxxKF (Alder Lake), Core i5 12xxxT (Alder Lake), Core i5 12xxxF (Alder Lake), Core i5 13xxx (Raptor Lake), Core i5 13xxxF (Raptor Lake), Core i5 13xxxT (Raptor Lake), Core i5 13xxxK (Raptor Lake), Core i5 13xxxKF (Raptor Lake), Core i5 14xxx (Raptor Lake-S), Core i5 14xxxF (Raptor Lake-S) , Core i5 14xxxK (Raptor Lake-S), Core i5 14xxxKF (Raptor Lake-S), Core i5 14xxxT (Raptor Lake-S), Core i7 12xxx (Alder Lake), Core i7 12xxxK (Alder Lake), Core i7 12xxxKF (Alder Lake), Core i7 12xxxT (Alder Lake), Core i7 12xxxF (Alder Lake), Core i7 13xxx (Raptor Lake), Core i7 13xxxF (Raptor Lake), Core i7 13xxxT (Raptor Lake), Core i7 13xxxK (Raptor Lake), Core i7 13xxxKF (Raptor Lake), Core i7 14xxx (Raptor Lake-S), Core i7 14xxxF (Raptor Lake-S), Core i7 14xxxK (Raptor Lake-S), Core i7 14xxxKF (Raptor Lake-S) , Core i7 14xxxT (Raptor Lake-S), Core i9 12xxx (Alder Lake), Core i9 12xxxK (Alder Lake), Core i9 12xxxKF (Alder Lake), Core i9 12xxxT (Alder Lake), Core i9 12xxxF (Alder Lake) , Core i9 12xxxKS (Alder Lake), Core i9 13xxx (Raptor Lake), Core i9 13xxxF (Raptor Lake), Core i9 13xxxT (Raptor Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxKF (Raptor Lake), Core i9 13xxxKS (Raptor Lake), Core i9 14xxx (Raptor Lake-S), Core i9 14xxxF (Raptor Lake-S), Core i9 14xxxK (Raptor Lake-S), Core i9 14xxxKF (Raptor Lake-S), Core i9 14xxxKS (Raptor Lake-S), Core i9 14xxxT (Raptor Lake-S), Pentium Gold Gxxxx (Alder Lake), Celeron Gxxxx (Alder Lake)
Chipset Intel® Z790
Slots PCIe x16 3x (of which: 1x PCIe x16, 1x PCIe x4, 1x PCIe x1)
Intel® Wi-Fi 6E AX211
BIOS 256 Mbit flash AMI UEFI BIOS
Form factor ATX
Use PC
Power supply ATX12V (24-pin + 8-pin + 4-pin)
Memory maximum 192 GB
Ports (external) USB-A 3.2 Gen 2 (10 Gbit/s) 1
Connectors (internal) SATA 6
Ports (optional) USB 3.2 Gen 1 (5 Gbit/s) 2
RGB Standard RGB Fusion
SATA controller Intel Z790
Directly usable RAID levels 0, 1, 10, 5
USB controller Intel Z790
Onboard graphics The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip.
Sound Realtek audio chip
LAN Realtek 2.5GbE LAN
Features Hybrid CrossFireX, Quad GPU CrossFireX
Further information In order to support the latest processor cores, a BIOS update may be required.
Dimensions Width: 244mm x Height: 305mm

Weight	1.70
Height	270
Length	335
Width	80
