Asus PRO B760M-C-CSM - Socket 1700 - motherboard

15 days

ID: 194997

Product Code: 90MB1DX0-M1EAYC

157.51€

(Ex Tax: 130.18€)

Leasing

Delivery options

Description

Related products

The picture is for illustrative purposes only and the actual product may differ from the picture. Notice a mistake? Please let us know.

Description

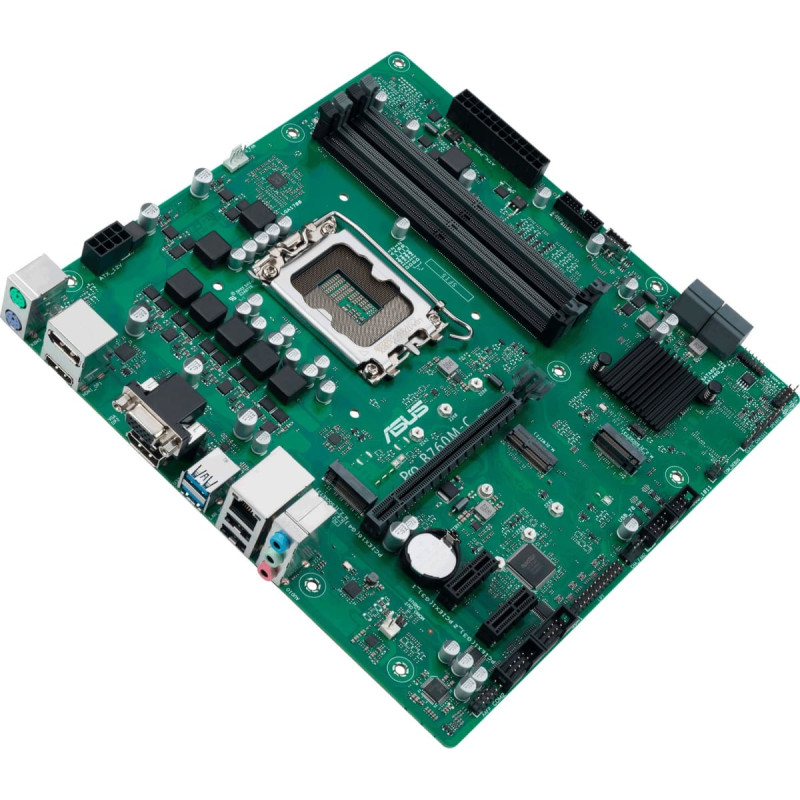

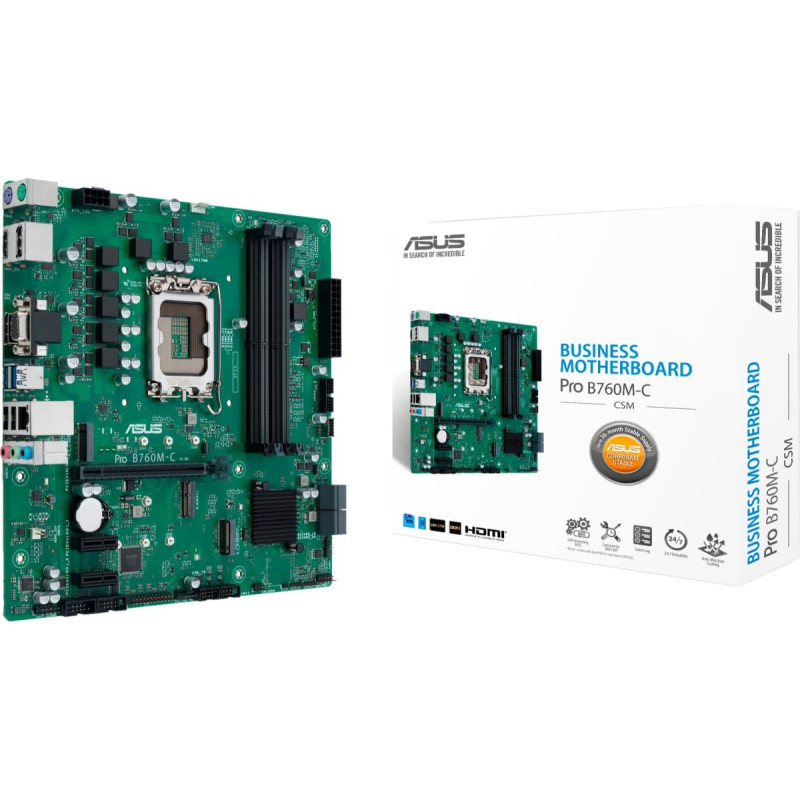

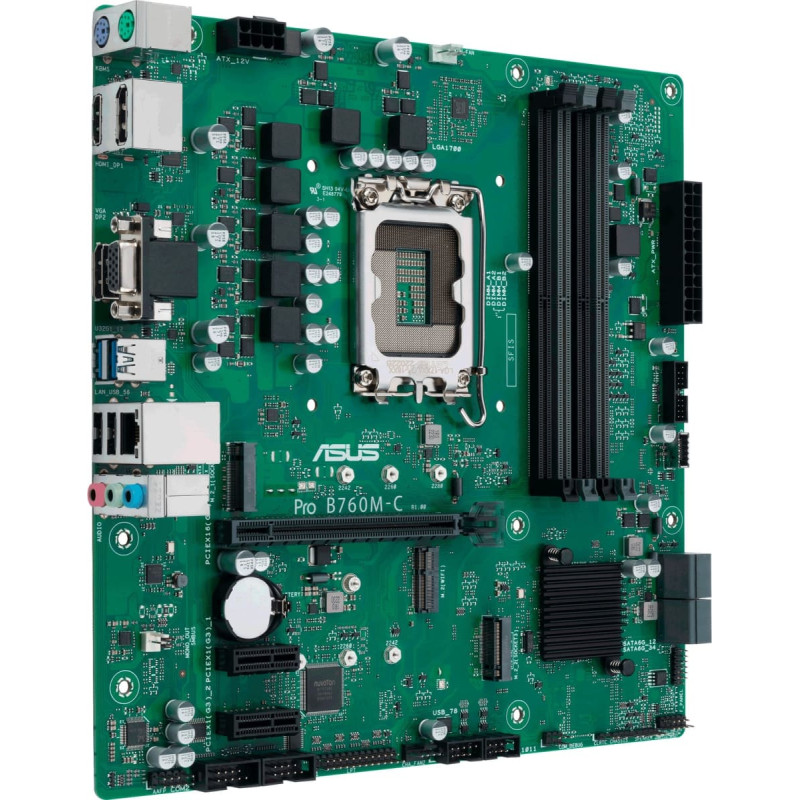

The ASUS PRO B760M-C-CSM mainboard is based on the Intel® B760 chipset and supports Intel® processors for the socket 1700. It has two DDR5 DIMM slots in dual-channel operation for up to 192 GB RAM. The ASUS PRO B760M-C-CSM also features a PCIe 4.0 x16 slot and two PCIe 3.0 x1 slots. The ASUS PRO B760M-C-CSM also has 8-channel sound, a Gigabit LAN interface, four SATA3 ports, two M.2 ports and a range of USB interfaces. Item no.: 100016330

Mainboard type
EAN4711387014691
Manufacturer No. 90MB1DX0-M1EAYC
Base 1700
Max. supported CPUs 1
Processor Supported Models Core i3 12xxx (Alder Lake), Core i3 12xxxT (Alder Lake), Core i3 12xxxF (Alder Lake), Core i3 13xxx (Raptor Lake), Core i3 13xxxF (Raptor Lake), Core i3 13xxxT (Raptor Lake), Core i3 14xxx (Raptor Lake-S), Core i3 14xxxF (Raptor Lake-S), Core i3 14xxxT (Raptor Lake-S), Core i5 12xxx (Alder Lake), Core i5 12xxxK (Alder Lake), Core i5 12xxxKF (Alder Lake), Core i5 12xxxT (Alder Lake), Core i5 12xxxF (Alder Lake), Core i5 13xxx (Raptor Lake), Core i5 13xxxF (Raptor Lake), Core i5 13xxxT (Raptor Lake), Core i5 13xxxK (Raptor Lake), Core i5 13xxxKF (Raptor Lake), Core i5 14xxx (Raptor Lake-S), Core i5 14xxxF (Raptor Lake-S), Core i5 14xxxK (Raptor Lake-S), Core i5 14xxxKF (Raptor Lake-S), Core i5 14xxxT (Raptor Lake-S), Core i7 12xxx (Alder Lake), Core i7 12xxxK (Alder Lake), Core i7 12xxxKF (Alder Lake), Core i7 12xxxT (Alder Lake), Core i7 12xxxF (Alder Lake), Core i7 13xxx (Raptor Lake), Core i7 13xxxF (Raptor Lake), Core i7 13xxxT (Raptor Lake), Core i7 13xxxK (Raptor Lake), Core i7 13xxxKF (Raptor Lake), Core i7 14xxx (Raptor Lake-S), Core i7 14xxxF (Raptor Lake-S), Core i7 14xxxK (Raptor Lake-S), Core i7 14xxxKF (Raptor Lake-S), Core i7 14xxxT (Raptor Lake-S), Core i9 12xxx (Alder Lake), Core i9 12xxxK (Alder Lake), Core i9 12xxxKF (Alder Lake), Core i9 12xxxT (Alder Lake), Core i9 12xxxF (Alder Lake), Core i9 12xxxKS (Alder Lake), Core i9 13xxx (Raptor Lake), Core i9 13xxxF (Raptor Lake), Core i9 13xxxT (Raptor Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxKF (Raptor Lake), Core i9 13xxxKS (Raptor Lake), Core i9 14xxx (Raptor Lake-S), Core i9 14xxxF (Raptor Lake-S), Core i9 14xxxK (Raptor Lake-S), Core i9 14xxxKF (Raptor Lake-S), Core i9 14xxxKS (Raptor Lake-S), Core i9 14xxxT (Raptor Lake-S), Pentium Gold Gxxxx (Alder Lake), Celeron Gxxxx (Alder Lake)
Chipset Intel® B760
Slots PCIe x16 1x (of which: 1x PCIe x16)
TPM Yes
BIOS 128Mb Flash ROM
Form factor µATX
Use PC
Power supply ATX12V (24-pin + 8-pin)
Maximum storage 192 GB
Connections (external) Keyboard (PS/2) 1
Connectors (internal) SATA 4
Ports (optional) USB 3.2 Gen 1 (5 Gbit/s) 4
SATA Controller Intel® B760
directly usable RAID levels 0, 1, 10, 5
USB Controller Intel® B760
Onboard graphics The graphics ports on the mainboard can only be used when using a CPU with an integrated graphics chip.
Sound Realtek 7.1 Surround Sound High Definition Audio
LAN Intel® 1Gb Ethernet
Further information To support the latest processor cores, a BIOS update may be required.
Dimensions Width: 244 mm x Height: 244 mm

Weight	0.40
Width	270
