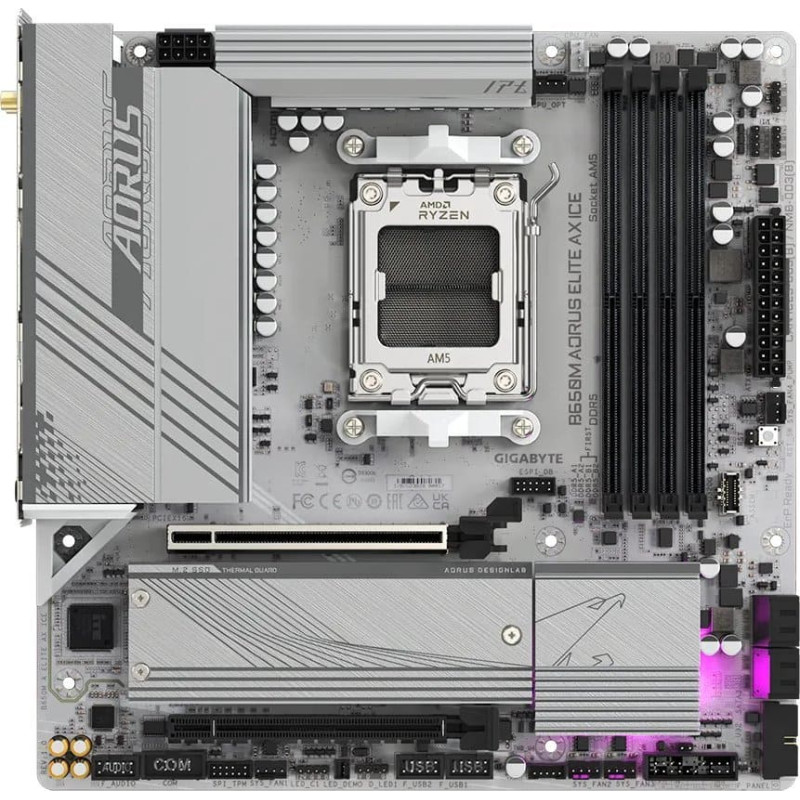

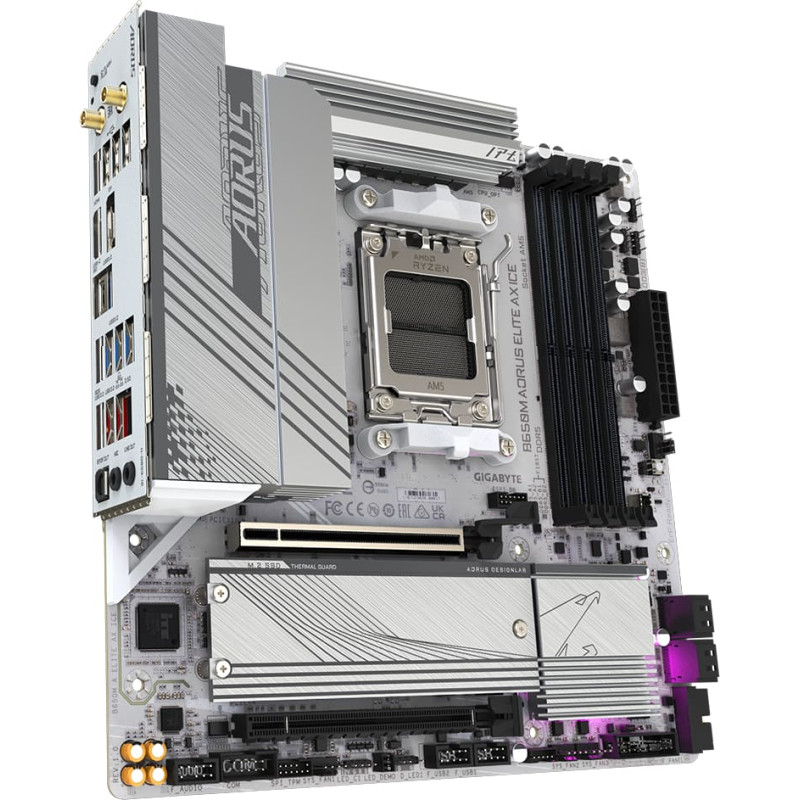

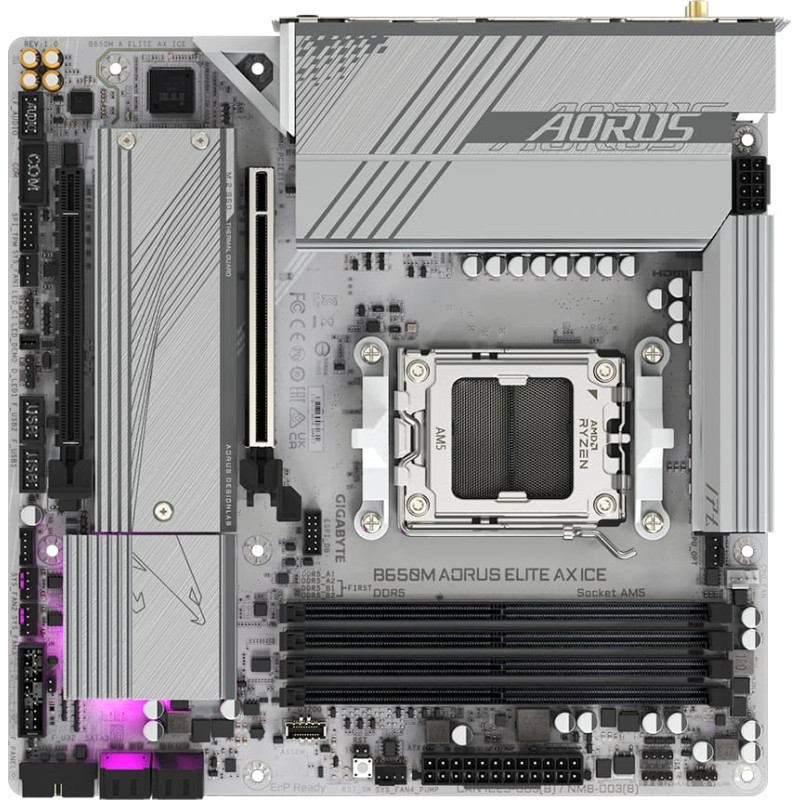

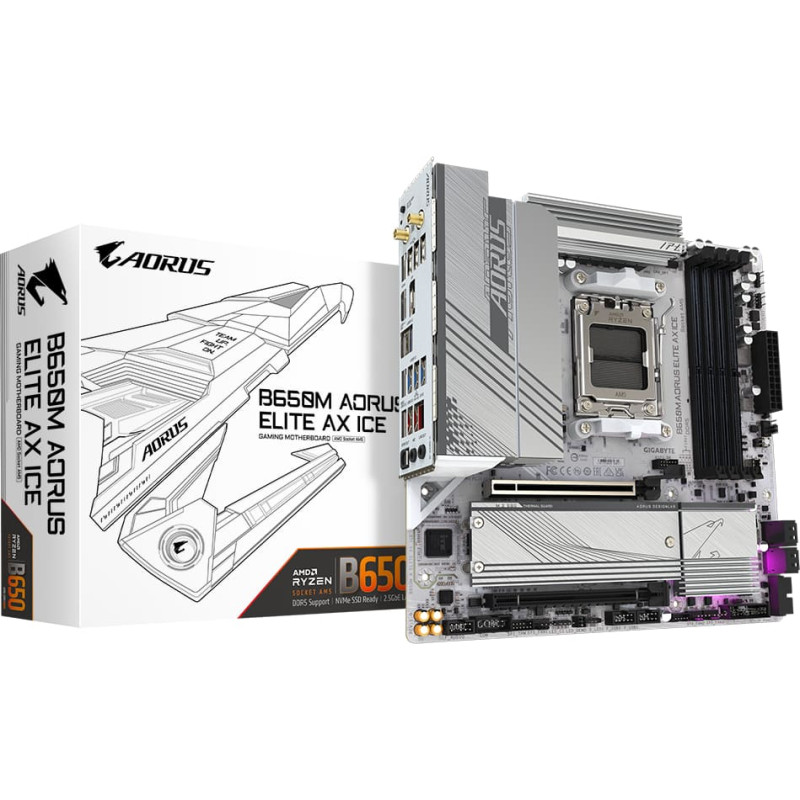

Gigabyte B650M AORUS ELITE AX ICE - Socket AM5 - motherboard (black)

10 days

ID: 154486

Product Code: B650M A ELITE AX ICE

187.32€

(Ex Tax: 154.81€)

Leasing

Delivery options

Description

Related products

The picture is for illustrative purposes only and the actual product may differ from the picture. Notice a mistake? Please let us know.

Description

The GIGABYTE B650M AORUS ELITE AX ICE is based on the AMD B650 chipset and supports AMD processors for the AM5 socket. It has four DDR5 slots for up to 192 GB of RAM. The GIGABYTE B650M AORUS ELITE AX ICE also features two PCIe 4.0 x16 slots. The GIGABYTE B650M AORUS ELITE AX ICE also has 8-channel sound, a 2.5 Gigabit LAN interface, WiFi 6E, Bluetooth, four SATA3 ports, two M.2 ports and a range of USB interfaces. Item no.: 100044005

Mainboard type
Silver
EAN Code 4719331859336
Manufacturer part number: B650M A ELITE AX ICE
Socket AM5
Max. supported CPUs 1
Operating system support Windows 10 ready, Windows 11 ready
Processor Supported Models Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 8xxxG (Phoenix), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 7 8xxxG (Phoenix), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael)
Chipset AMD B650
Slots PCIe x16 2x (of which: 1x PCIe x16, 1x PCIe x4)
Realtek RTL8852CE + BLUETOOTH 5.3
BIOS AMI UEFI BIOS 256 Mbit Flash
Form factor µATX
Use PC
Power supply ATX12V (24-pin + 8-pin)
Maximum storage 192 GB
Ports (external) USB-C 3.2 Gen 2 (10 Gbit/s) 1
Connectors (internal) SATA 4
Ports (optional) USB 3.2 Gen 1 (5 Gbit/s) 2
SATA controller AMD B650
directly usable RAID levels 0, 1, 10
USB Controller AMD B650
Onboard graphics The graphics ports on the mainboard can only be used when using a CPU with an integrated graphics chip.
Sound Realtek 7.1 Audio
LAN Realtek 2.5GbE LAN
Further information To support the latest processor cores, a BIOS update may be required.
Dimensions Width: 244 mm x Height: 244 mm

Weight	1.70
Height	70
Length	270
Width	270
