Asus PRIME B650M-K - Socket AM5 - motherboard

15 days

ID: 148792

Product Code: 90MB1F60-M0EAY0

208.44€

(Ex Tax: 172.26€)

Leasing

Delivery options

Description

Related products

The picture is for illustrative purposes only and the actual product may differ from the picture. Notice a mistake? Please let us know.

Description

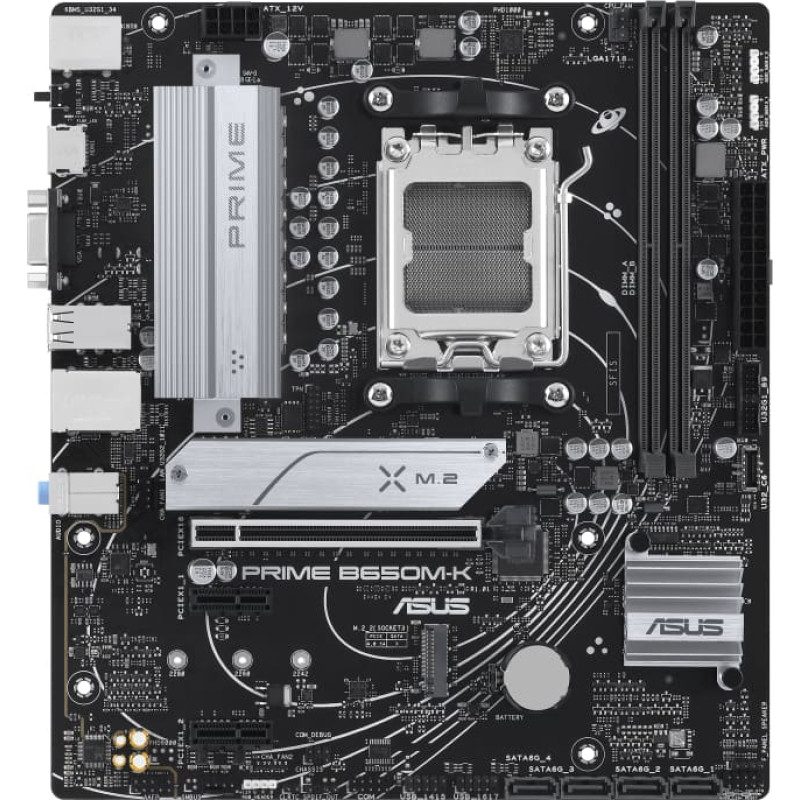

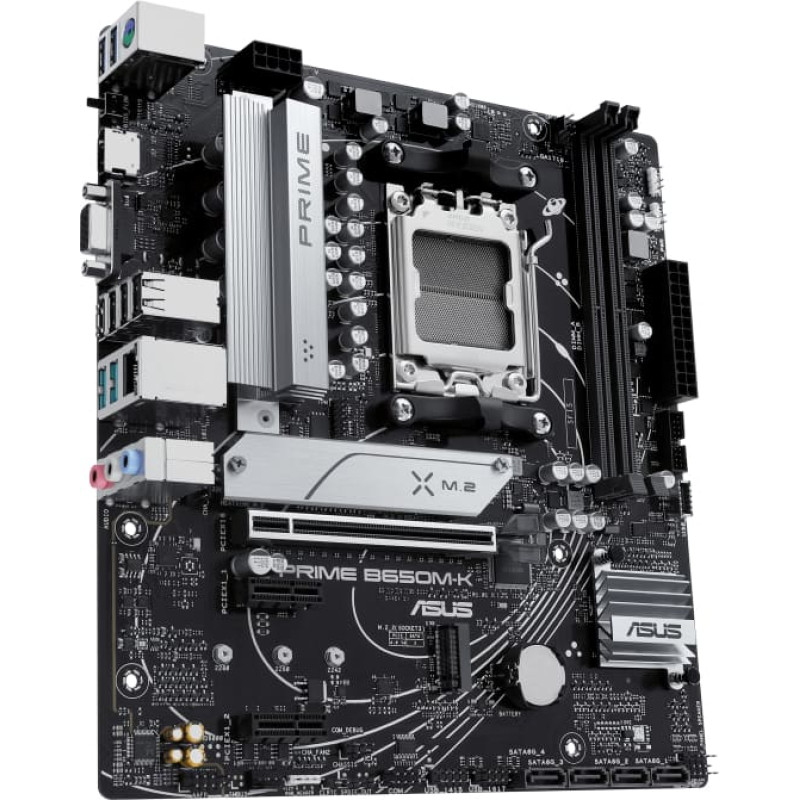

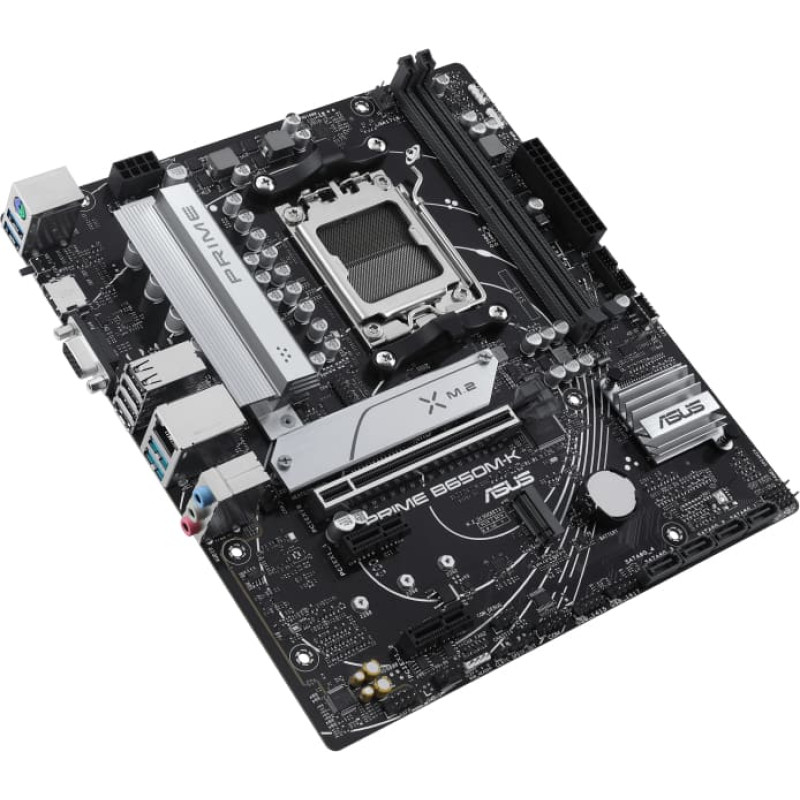

The ASUS PRIME B650M-K motherboard is based on the AMD B650 chipset and supports AMD processors for the AM5 socket. It has two DDR5 DIMM slots in dual-channel operation for up to 96 GB of RAM. The ASUS PRIME B650M-K also features a PCIe 4.0 x16 slot and two PCIe 4.0 x1 slots. The PRIME B650M-K also has 8-channel sound, a 2.5 Gigabit LAN interface, four SATA3 ports, two M.2 ports (1x with PCIe 5.0 support) and a range of USB ports. Item no.: 100019966

Mainboard type
EAN4711387236628
Manufacturer No. 90MB1F60-M0EAY0
Socket AM5
Max. supported CPUs 1
Operating system support Windows 10 ready, Windows 11 ready
Processor Supported Models Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 8xxxG (Phoenix), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 7 8xxxG (Phoenix), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael)
Chipset AMD B650
Slots PCIe x16 1x (of which: 1x PCIe x16)
TPM Yes
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form factor µATX
Use PC
Power supply ATX12V (24-pin + 8-pin)
Maximum storage 96 GB

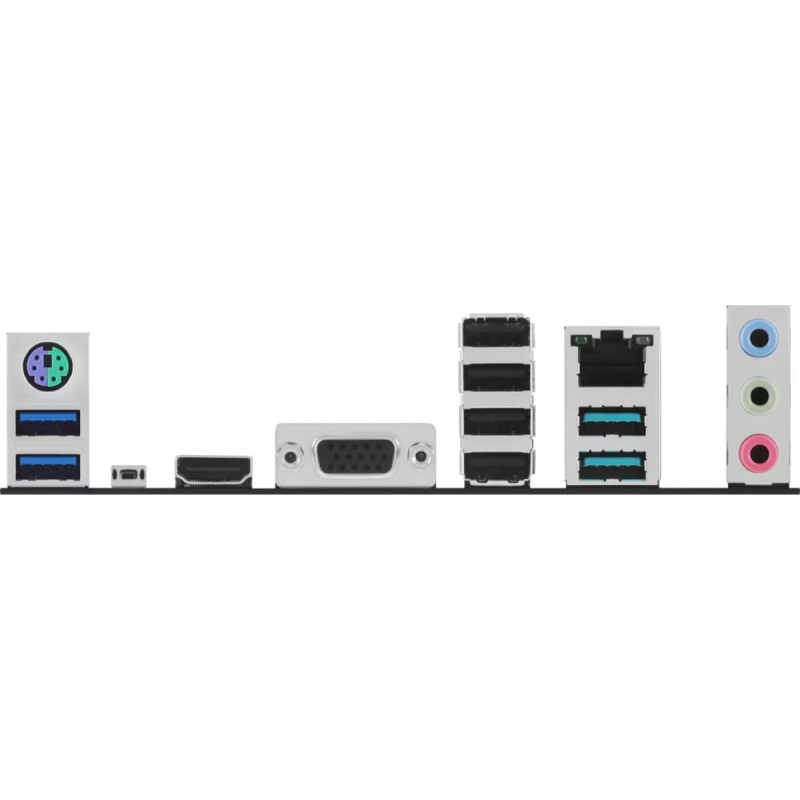

Connections (external) Mouse/Keyboard Combo (PS/2) 1
Connectors (internal) SATA 4
Ports (optional) USB 3.2 Gen 1 (5 Gbit/s) 2
RGB Standard AURA Sync
SATA controller AMD B650
USB Controller AMD B650
Onboard graphics The graphics ports on the mainboard can only be used when using a CPU with an integrated graphics chip.
Sound Realtek 7.1 Surround Sound
LAN Realtek 2.5Gb Ethernet
Accessories available 2x SATA cable, I/O shield, accessory set for M.2 SSD, instructions
Dimensions Width: 221 mm x Height: 244 mm

Weight	1.08
Height	55
Length	270
Width	265
