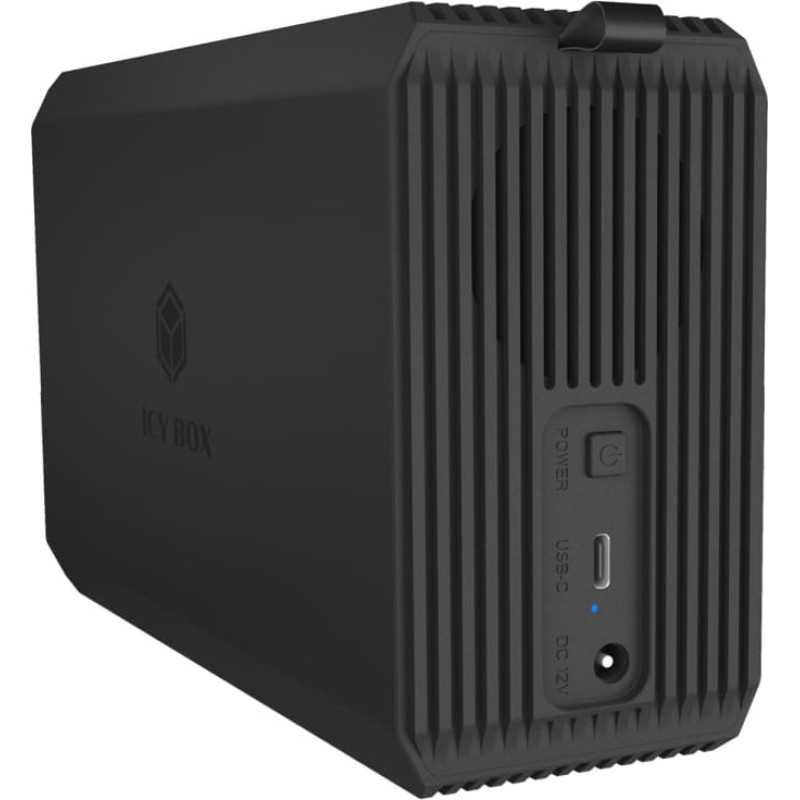

Icy Box IB-RD3720-CU3 2-fach RAID Gehäuse 2,5 /3,5

8 days

ID: 283064

Product Code: IB-RD3720-CU3

54.72€

(Ex Tax: 45.22€)

Leasing

Delivery options

Description

Related products

The picture is for illustrative purposes only and the actual product may differ from the picture. Notice a mistake? Please let us know.

Description

RAID system for 2-bay 2.5"/3.5" SATA HDD/SSD with RAID mode switches

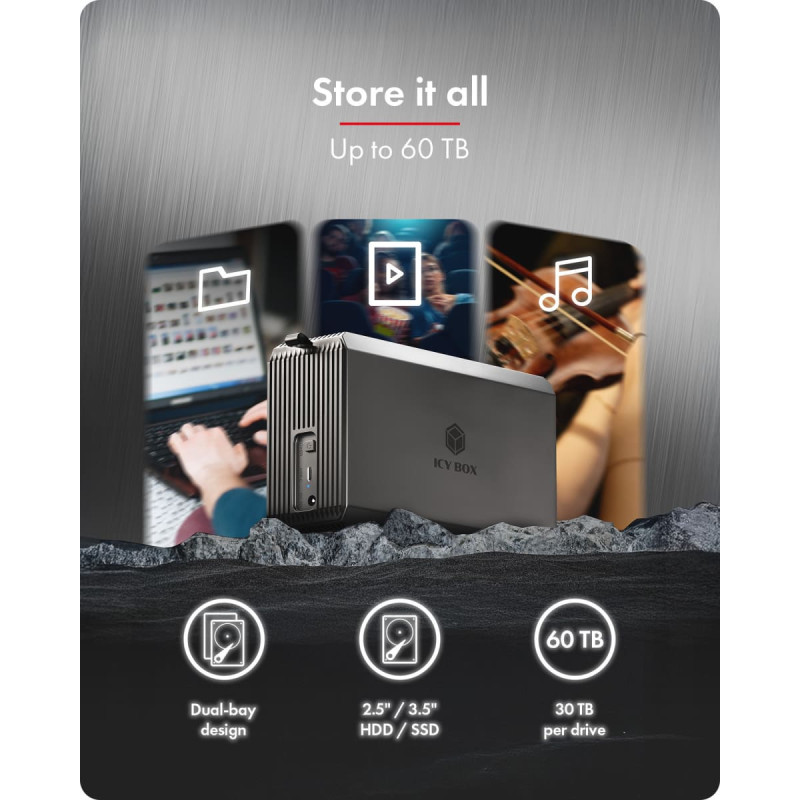

Store it all, up to 60 TB
Designed for large-scale storage needs, this RAID system supports two 3.5" or 2.5" drives with a combined capacity of up to 60 TB. Ideal for backups, multimedia projects, and data-heavy workflows.

RAID mode instructions
Easily configure your preferred RAID setup: RAID 0, RAID 1, SINGLE, or LARGE via the integrated DIP switch. Flexible options let you balance between performance and data security.

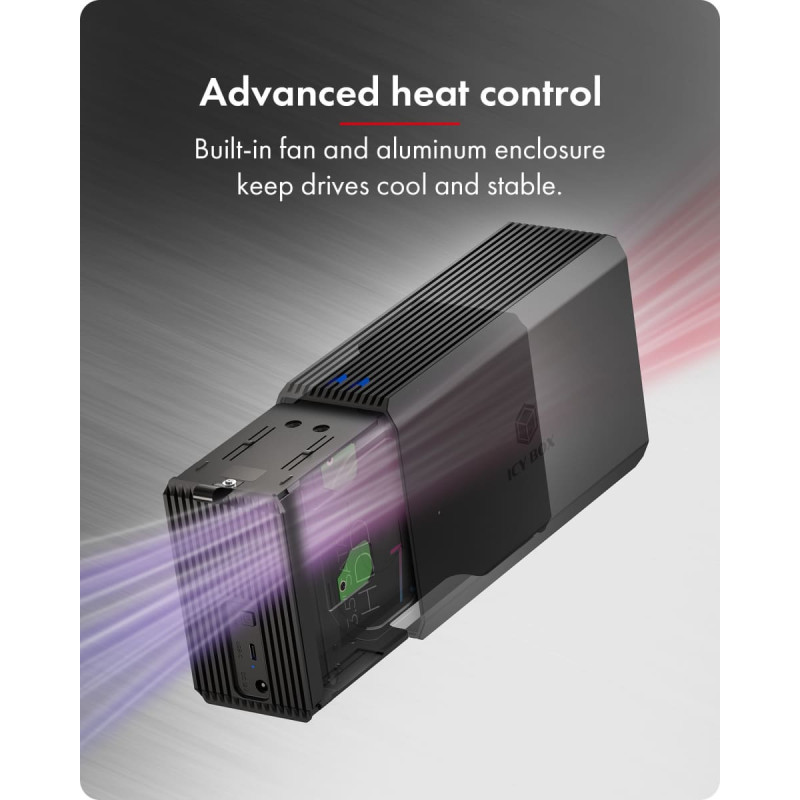

Advanced heat control
Equipped with a 50x50 mm fan, the unit maintains optimal operating temperatures even under heavy workloads. This ensures stable performance and extends drive lifespan.

Fast and stable 5 Gbps performance
The USB 3.2 Gen 1 Type-C® interface delivers transfer speeds of up to 5 Gbps. Perfect for handling large files quickly and reliably.

Wide system & drive compatibility
Compatible with both 2.5" and 3.5" SATA HDDs or SSDs, and supports SATA III with backward compatibility for SATA II drives. Works seamlessly across different setups and operating systems.

Ready to use, all accessories included
Comes complete with a power adapter, cables, and everything needed for setup. Ready to run right out of the box for immediate data access.

Double the bays, double the choice
With room for 2 drives, the IB-RD3720-CU3 is designed to work with both 2.5" and 3.5" HDDs or SSDs, giving you the freedom to mix and match based on your storage needs. Whether you prefer the compact size of 2.5" drives or the larger capacity of 3.5", installation is straightforward and convenient.

Connect fast, work faster
With its USB 3.2 Gen 1 Type-C® connection, this RAID system keeps data moving at speeds of up to 5 Gbps. That means large video files, photo libraries, or project backups transfer quickly without long waits. USB Type-C® is compatible with a wide range of modern notebooks, desktops, and devices, so you spend less time worrying about cables and enjoy more time focusing on your work or entertainment.

Switch it your way
The built-in DIP switch makes it simple to choose how your storage works for you. With just a flick, you can select between 4 modes: RAID 0 for faster access, RAID 1 for reliable backup, SINGLE for independent drives, or LARGE to combine capacity into one big volume. There’s no complicated setup and you can adapt the system to different projects, balancing performance and protection depending on what matters most.

Storage drive size	2.5/3.5"
Supported storage drive interfaces	Serial ATA II, Serial ATA III
Number of storage drives supported	2
RAID levels	0, 1
Hot-swap	Yes
Maximum storage capacity	30 TB
USB connectivity	Yes
USB version	3.2 Gen 1 (3.1 Gen 1)
USB connector type	USB Type-C
USB ports quantity	1
DC-in jack	Yes
Product type	HDD/SSD enclosure
Product colour	Black
Material	Aluminium
LED indicators	Yes
On/off switch	Yes
Number of fans	1 fan(s)
Fan diameter	5 cm
Data transfer rate	5 Gbit/s
Chipset	JMS561
Plug and Play	Yes
Country of origin	China
Power source type	DC
External power adapter	Yes
AC adapter output voltage	12 V
AC adapter output current	4 A
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 90%
Width	65 mm
Depth	200 mm
Height	117 mm
Weight	786 g
Cable length	1 m
Package width	175 mm
Package depth	300 mm
Package height	100 mm
Package weight	1.16 kg
Package type	Box
