Chieftec CBP-425 (black)

15 days

ID: 151335

Product Code: CBP-425

74.77€

(Ex Tax: 61.79€)

Leasing

Delivery options

Description

Related products

The picture is for illustrative purposes only and the actual product may differ from the picture. Notice a mistake? Please let us know.

Description

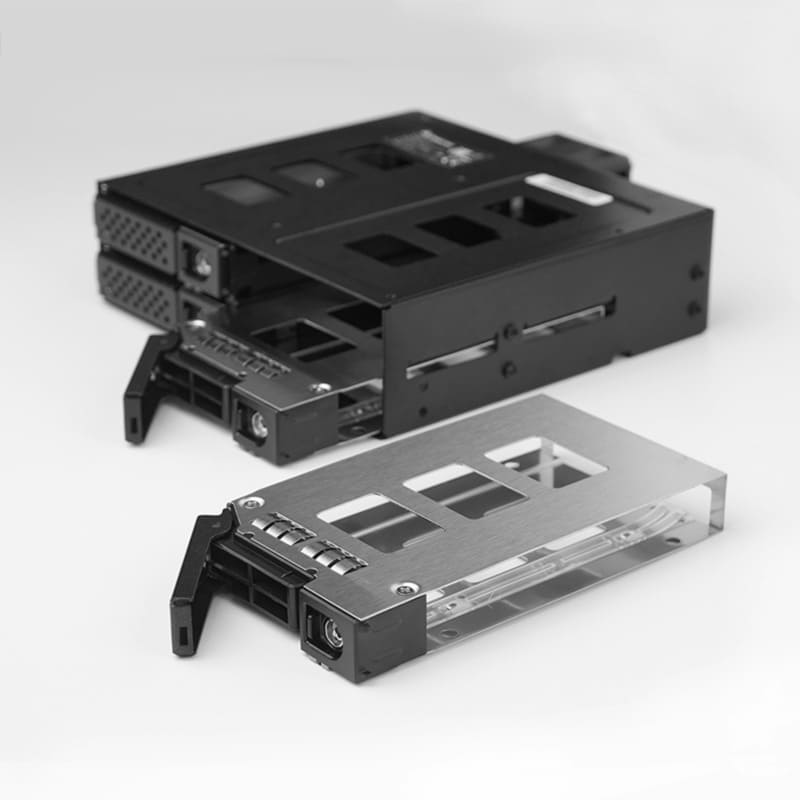

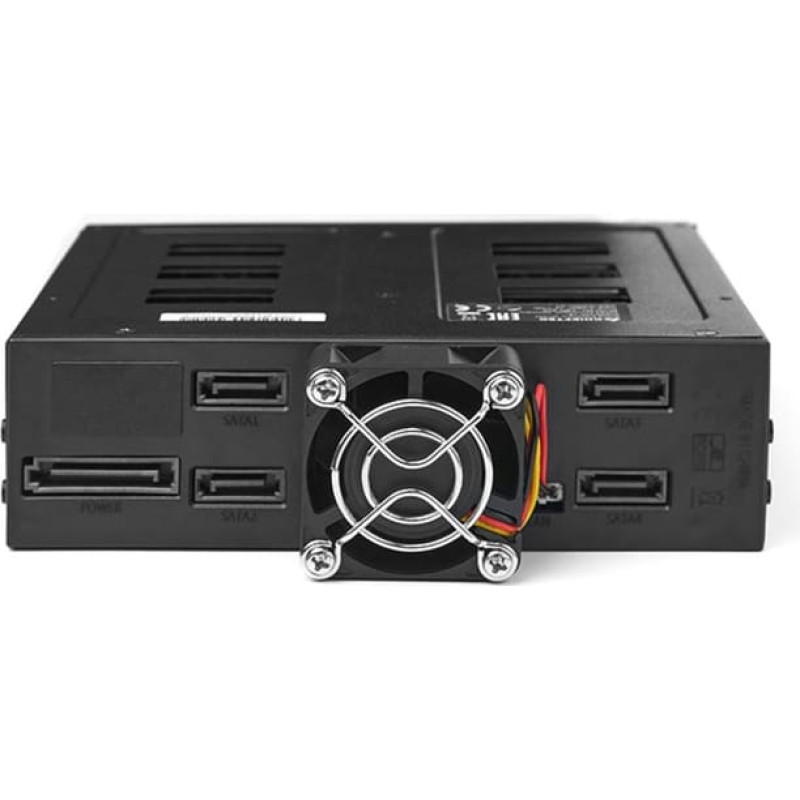

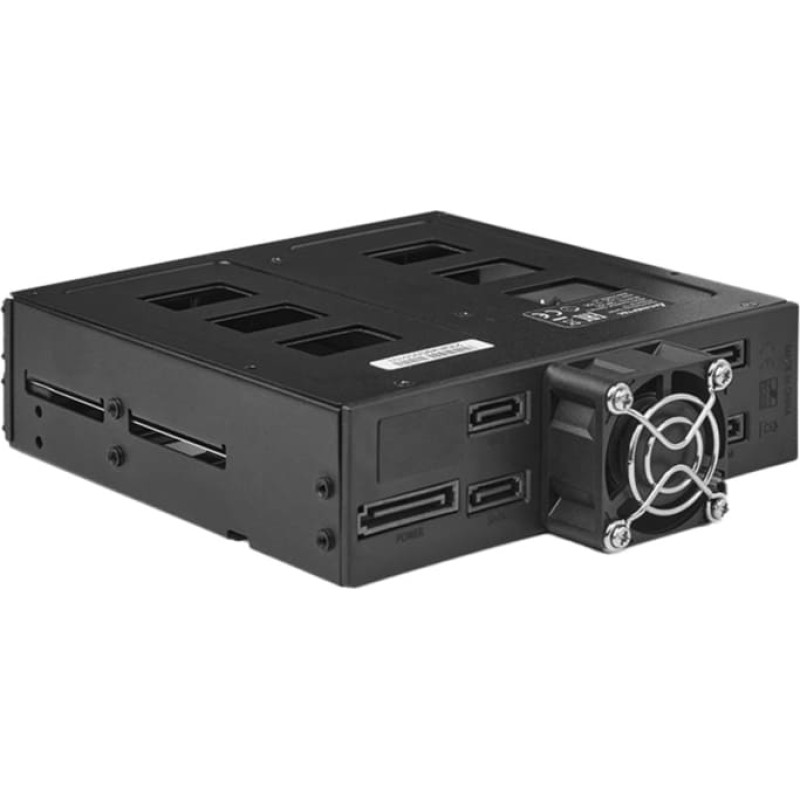

The highly innovative CBP-425 backplane sets a new standard by offering the possibility of mounting 4x 2.5-inch HDD/SSD/SATA I/II/III and SAS I/II/III via a 1x 5.25-inch bay. The CBP-425 is compatible with 2.5-inch HDDs/SSDs (height: 7-15 mm) and supports data transfer rates of 6G SATA and 12G SAS. Intuitive LED indicators for SATA power connection and hard drive access ensure user-friendliness, while removable trays enable easy installation. The 100% metal and lockable housing ensures maximum security. All installed HDDs/SSDs are hot-swappable, making them suitable for a wide range of applications.Article no.: 100029611

Type Backplane
Color: Black
EAN-0753263078247
Manufacturer No. CBP-425
suitable for 1x 5.25" bay for 4x 2.5" HDDs/SSDs
Hot-swap support Yes
Connectors 4x SATA III connector
Feature With anti-vibration springs on the hard drive compartment, LED for detecting fan errors, Overheating LED, Up to 6 Gbit/s data transfer rate (SATA III), Up to 12 Gbit/s data transfer rate (SAS III)
More information 40mm fan
Note form factor: 1x 5.25" bay for 4x 2.5" HDDs/SSDs (max. HDD/SSD height up to 15mm)
Accessories available SATA backplane, 4x SATA cable, 2 keys, screw set, user manual
Dimensions Width: 145.8 mm x Height: 41.6 mm x Depth/Length: 159 mm
Weight 800 grams

Weight	0.78
Height	50
Length	233
Width	155
