Home Car Electric vehicle charging systems Go-E Charger Gemini 2.0, 11 kW (16A 3-phase), wallbox (white/black, without cable, 4G/LTE)

Go-E Charger Gemini 2.0, 11 kW (16A 3-phase), wallbox (white/black, without cable, 4G/LTE)

15 days

ID: 160387

Product Code: CH-05-11-51

Brand: GO-E

633.58€

(Ex Tax: 523.62€)

Leasing

Delivery options

Description

Related products

The picture is for illustrative purposes only and the actual product may differ from the picture. Notice a mistake? Please let us know.

Description

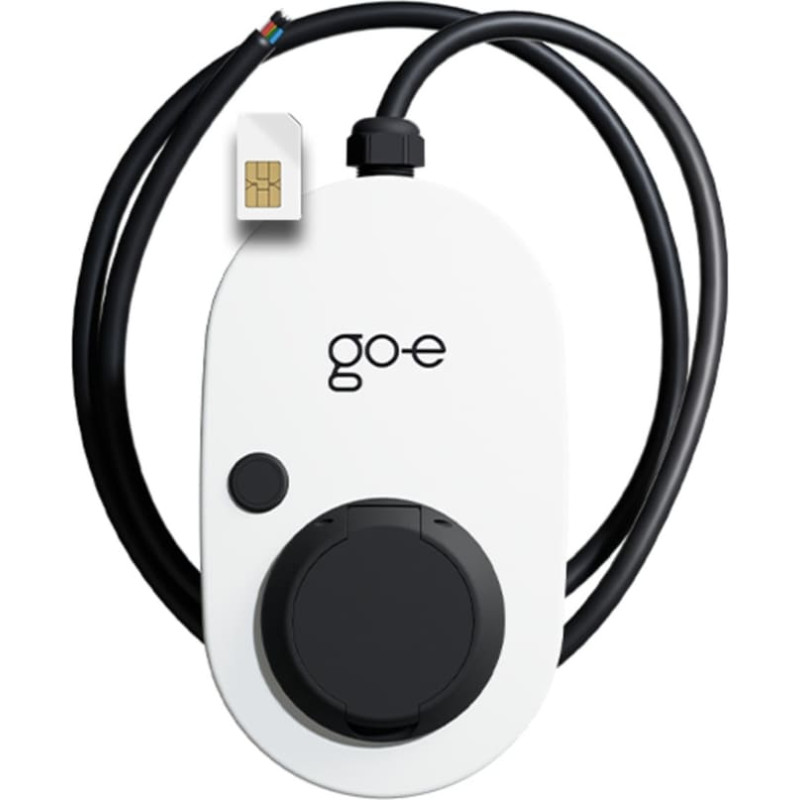

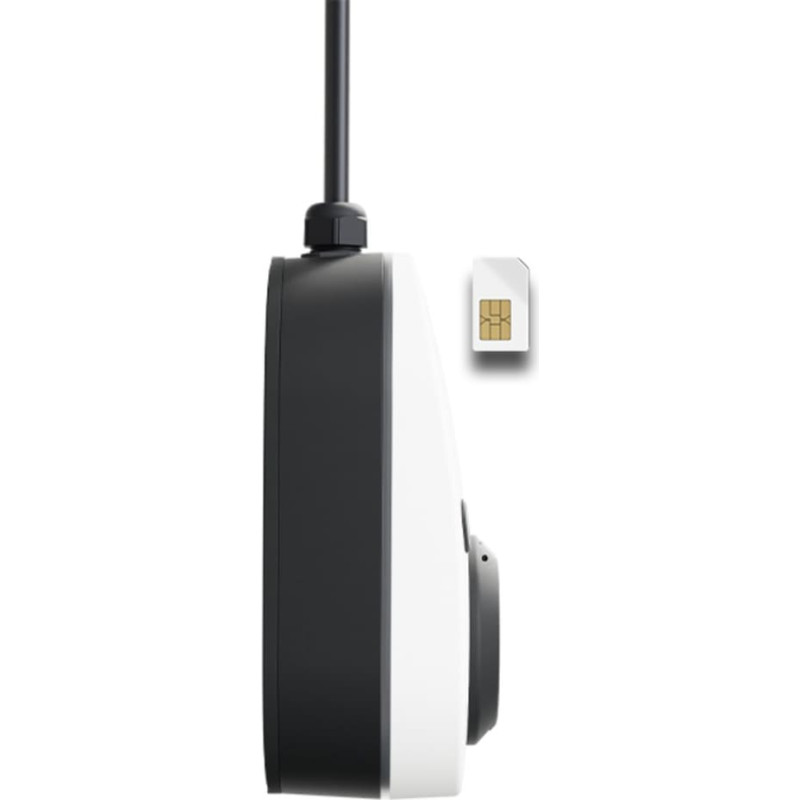

The go-e Charger Gemini 2.0 11 kW is a smart charging station with a timeless design for installation indoors and outdoors. Thanks to the integrated SIM card, the go-e Charger Gemini 2.0 11 kW has all the intelligent functions of the previous Gemini series, but now they also work without a WiFi connection. The charging station has a 1.8 meter long connection cable for a permanent connection to a power distribution box. Unlike the go-e Charger Gemini flex, the charger does not have a plug and therefore cannot be used on the move. It is the clever solution for anyone who needs an intelligent home charging station for pure wall installation. The charger charges electric cars and plug-in hybrids easily, quickly and safely. The extremely compact wallbox is suitable for use by private households and small companies (provided that no electricity billing is planned). Apart from mobility, the go-e Charger Gemini offers the same range of functions as the go-e Charger Gemini flex (with plug). In addition to extensive safety functions such as DC fault protection (FI protection module), phase detection and earthing measurement, the charging station is equipped with RFID for access control (up to 10 users per charger, activation via app if required) and hotspot / WLAN. PV connection via the API interface, load management and the use of flexible electricity tariffs are also part of the range of functions. With the free go-e Charger app, comfort and basic settings can be changed, allowing the device to be adapted to personal charging behavior and encouraging more sustainable charging. A major advantage during installation compared to the classic wall charging station is that the go-e Charger Gemini can be quickly connected to any existing junction box by an electrician. This saves time and money.Article no.: 100058715

Type Wallbox
Color white/black
EAN-9120087411986
Manufacturer No. CH-05-11-51
Made in Austria
Gemini Series
Purpose Charging of electric cars, without charging for charging current
Area of application Outdoor area without direct sunlight
Installation Wall mounting, surface mounting
Voltage 230 - 415 V
Charging power 1.4 - 11 kW
Charging mode IEC 61851-1, Mode 3
Charging current adjustable Yes
Charging current 6 - 16 A
Charging point(s) (1x Type 2 socket)
Power consumption in standby mode 5.2 watts
Interface(s) GSM, 4G/LTE, Modbus TCP, WLAN
Access control RFID
Protection mechanisms Integrated DC protection module with direct current detection and AC detection (6mA DC, 20mA AC), anti-theft protection: locking of the charging cable
Operation Adjusting the charging power via push button and app, charging timer
Display/Indicator Ampere and status display readable via LED ring and app, LED adjustment
IP protection class IP65
Protection class I
IK shock resistance level IK08
Ambient conditions Operating temperature -25 - 40 °C
optional adapter cable type 2 to type 1
Installation conditions Required on site FI type A, circuit breaker
Feature electricity meter (total kWh and total amount per RFID chip), kWh limit mode / eco mode / planned charging mode, push notifications, photovoltaic connection via open API interface (programming required), updateable for later functions (smart home, etc.)
Further information Flexible electricity tariffs with intelligent charging management, synchronization of charging processes with the cloud and display of past charging processes, single or three-phase connection, network types: TT / TN / IT, start/stop function, OCPP 1.6
Note: A qualified electrician is required for installation, repair or maintenance! This person will also be responsible for reporting to the local network operator/energy supplier.
Accessories available: quick guide, wall bracket including screws and dowels, connection cable (1.8 meters) for permanent installation, optionally mountable anti-theft device (U-piece), a reset card, an RFID chip (already trained)
Dimensions Width: 15.5 cm x Height: 26 cm x Depth/Length: 11 cm
Weight 1.9 kg
