Gigabyte Mainboard|GIGABYTE|AMD B840|Socket AM5|micro ATX|RAM DDR5-SDRAM|2xSlots|2xNumber of M.2 (M) slots|B840MD2H1.2

Gigabyte Mainboard|GIGABYTE|AMD B840|Socket AM5|micro ATX|RAM DDR5-SDRAM|2xSlots|2xNumber of M.2 (M) slots|B840MD2H1.2

Out Of Stock

ID: 286106

Product Code: B840M D2H 1.2

107.08€

(Ex Tax: 88.50€)

Leasing

Delivery options

Description

Related products

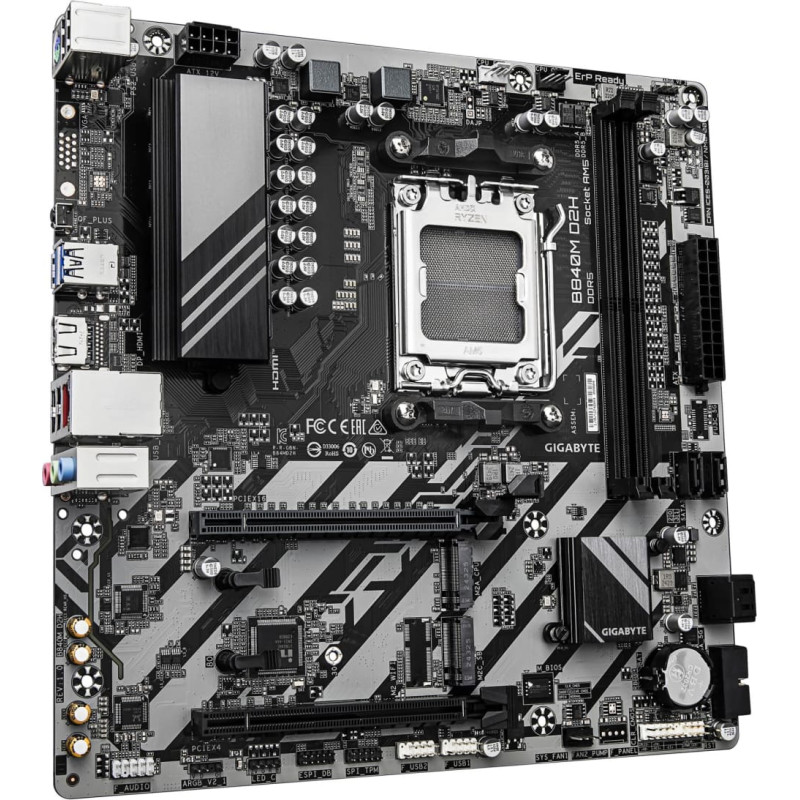

The picture is for illustrative purposes only and the actual product may differ from the picture. Notice a mistake? Please let us know.

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

X3D Turbo Mode to unleash new era gaming performance
AMD Socket AM5 : Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
Digital 5+2+2 phases VRM solution
Dual Channel DDR5 : 2*DIMMs with AMD EXPO Memory Module Support
EZ-Latch : PCIe x16 Slot with Quick Release Design
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 4.0 x4
Fast Networking : 2.5GbE LAN

Manufacturer Website:
https://www.gigabyte.com/

Summary	GIGABYTE B840M D2H Motherboard - AMD Ryzen 9000 CPUs, 5+2+2 Phases VRM, up to 7600MHz DDR5, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 2.5GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125
Category Code	MBA
CnCode	84733020
Unit Box Height	0.06
Unit Box Length	0.26
Unit Box Width	0.27
Audio chip	Realtek ALC897
Audio output channels	7.1 channels
Component for	PC
Cooling type	Passive
Motherboard chipset	AMD B840
Motherboard chipset family	AMD
Motherboard form factor	micro ATX
PC health monitoring	Fan/Temperature/Voltage/Water cooling
Power source type	ATX
Product colour	Dark brown
Windows operating systems supported	Windows 10 x64/Windows 11 x64
Compatible processor series	AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor manufacturer	AMD
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
ECC сompatibility	Non-ECC
Maximum internal memory	128 GB
Maximum internal memory per slot	64 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory clock speed (max)	7600 MHz
Supported memory clock speeds	4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600 MHz
Supported memory types	DDR5-SDRAM
Unbuffered memory	Yes
Number of HDDs supported	4
Number of storage drives supported	6
RAID levels	0/1/10
RAID support	Yes
Supported storage drive interfaces	M.2,PCI Express 4.0,SATA III
Supported storage drive types	HDD & SSD
DirectX version	12.0
HDCP	Yes
Maximum resolution	4096 x 2160 pixels
Parallel processing technology support	Not supported
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
Front panel audio connector	Yes
Front panel connector	Yes
Number of chassis fan connectors	1
Number of CPU fan connectors	2
Number of EPS power connectors (8-pin)	1
Number of RGB LED pin headers	3
Number of SATA III connectors	4
Number of water pump connectors	1
RGB LED pin header	Yes
TPM connector	Yes
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Headphone outputs	1
Line-in	Yes
Microphone in	Yes
PS/2 ports quantity	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet interface type	2.5 Gigabit Ethernet
Ethernet LAN	Yes
LAN controller	Realtek RTL8125
Wi-Fi	No
1st M.2 highest PCI Express generation	4.0
1st M.2 largest key size	2580
2nd M.2 highest PCI Express generation	3.0
2nd M.2 largest key size	2280
Number of M.2 (M) slots	2
PCI Express x16 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
ACPI version	5.0
BIOS memory size	256 Mbit
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Battery weight	3 g
Lithium weight per battery	0.07 g
Number of battery cells	1
Package depth	265 mm
Package height	54 mm
Package weight	1026.4 g
Package width	265 mm
Products per shipping (inner) case	1 pc(s)
Depth	244 mm
Height	35 mm
Width	244 mm
Batteries included	Yes
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Screws included	Yes
Warranty period	3 year(s)
Weight	940 g
Units per Shipping Box	10
Unit Calculated Volume	0.004669 cubm
Unit Calculated Weight	1.04 kg
