Gigabyte Mainboard|GIGABYTE|AMD X870E|Socket AM5|ATX|RAM DDR5-SDRAM|4xSlots|Wi-Fi Yes|Bluetooth Yes|5xNumber of M.2 (M) slots|X870E A MASTER X ICE|X870EAMASTERXICE

Gigabyte Mainboard|GIGABYTE|AMD X870E|Socket AM5|ATX|RAM DDR5-SDRAM|4xSlots|Wi-Fi Yes|Bluetooth Yes|5xNumber of M.2 (M) slots|X870E A MASTER X ICE|X870EAMASTERXICE

Out Of Stock

ID: 279557

Product Code: X870E A MASTER X ICE

508.25€

(Ex Tax: 420.04€)

Leasing

Delivery options

Description

Related products

The picture is for illustrative purposes only and the actual product may differ from the picture. Notice a mistake? Please let us know.

Description

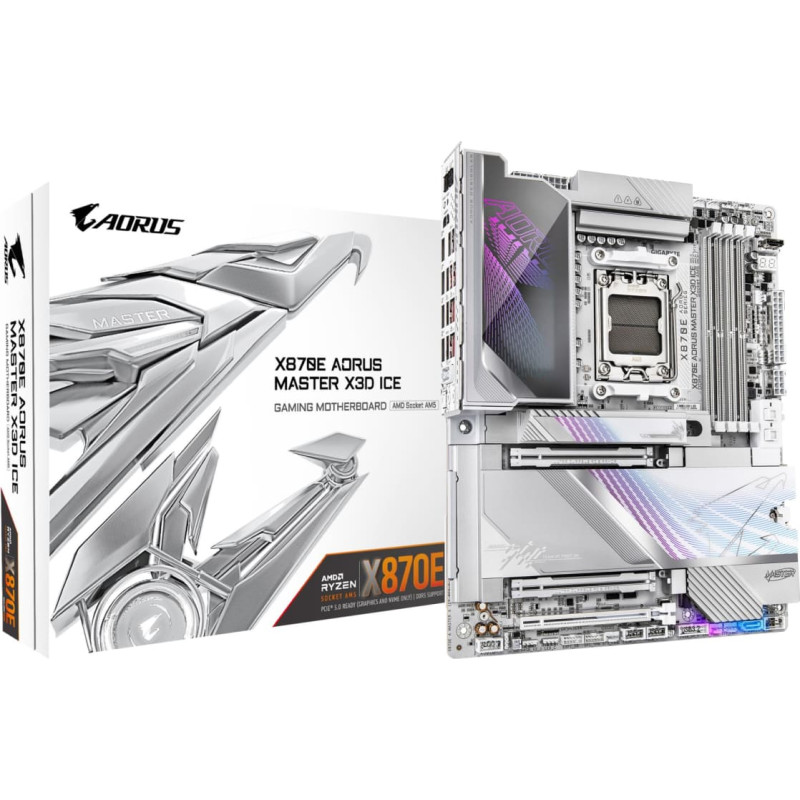

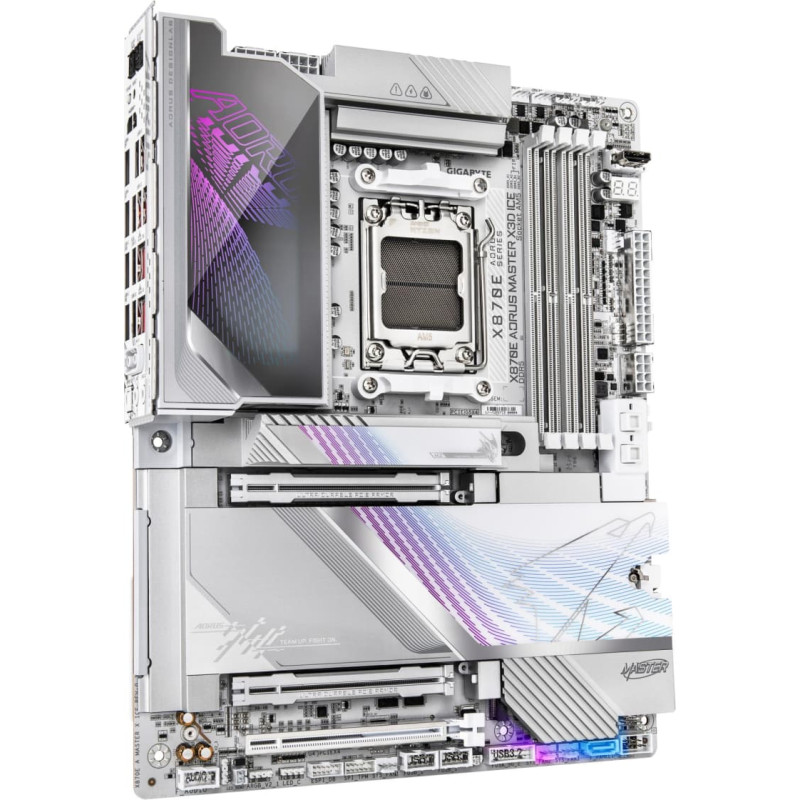

GIGABYTE X870E A MASTER X ICE

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI
Dual Channel DDR5: 4*DIMMs with AMD EXPO Memory Module Support. DDR5 OC up to 9000MT/s
AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
Digital twin 18+2+2 phases VRM solution
PCIe EZ-Latch Plus Duo: One click for screwless & quick release on dual PCIe slots
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
M.2 EZ-Latch Click & Plus: Quick Release & Screwless Design on M.2 slots and heatsinks
Ultra-Fast Storage: 5*M.2 slots, including PCIe 5.0 x4
Fast Networking: 10GbE LAN + 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
Extended Connectivity: HDMI, Dual USB4 Type-C with DP-Alt, Front QC-USB 65W

Manufacturer Website:
https://www.gigabyte.com/

Summary	GIGABYTE X870E AORUS MASTER X3D ICE Motherboard - Supports AMD Ryzen 9000 CPUs, 18+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 2xPCIe 5.0 + 3xPCIe 4.0, Wi-Fi 7, 10GbE LAN, USB 4. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8126, Realtek RTL8127, Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Category Code	MBA
CnCode	84733020
Unit Box Height	0.31
Unit Box Length	0.34
Unit Box Width	0.095
Audio chip	Realtek ALC1220-VB/ESS 9118
Audio output channels	7.1 channels
Component for	PC
Cooling type	Passive
Motherboard chipset	AMD X870E
Motherboard chipset family	AMD
Motherboard form factor	ATX
PC health monitoring	CPU/Fan/Temperature/Voltage/Water cooling
Power source type	ATX
Product colour	White
Windows operating systems supported	Windows 11 x64
Compatible processor series	AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor manufacturer	AMD
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
ECC сompatibility	ECC & Non-ECC
Maximum internal memory	256 GB
Maximum internal memory per slot	64 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory clock speed (max)	9000 MHz
Supported memory clock speeds	4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600/7800/8000/8200/8400/8600/8800/9000 MHz
Supported memory types	DDR5-SDRAM
Unbuffered memory	Yes
Number of HDDs supported	2
Number of storage drives supported	7
RAID levels	0/1/10/5
RAID support	Yes
Supported storage drive interfaces	M.2,PCI Express 4.0,PCI Express 5.0,SATA III
Supported storage drive types	HDD & SSD
DirectX version	12.0
HDCP	Yes
Maximum resolution	4096 x 2304 pixels
Parallel processing technology support	Not supported
ATX Power connector (24-pin)	Yes
Chassis intrusion connector	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
Front panel audio connector	Yes
Front panel connector	Yes
Number of chassis fan connectors	6
Number of CPU fan connectors	2
Number of EPS power connectors (8-pin)	3
Number of noise detection headers	1
Number of RGB LED pin headers	5
Number of SATA III connectors	2
Number of temperature sensor headers	2
Number of water pump connectors	2
RGB LED pin header	Yes
TPM connector	Yes
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2x2 connectors	1
Digital audio optical out	1
DisplayPort version	1.4
Ethernet LAN (RJ-45) ports	2
HDMI ports quantity	1
HDMI version	2.1
Headphone outputs	1
Line-in	Yes
S/PDIF out port	Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	7
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB4 Gen 2x2 ports quantity	2
WiFi-AP antenna jack	2
Bluetooth	Yes
Bluetooth version	5.4
Ethernet interface type	10 Gigabit Ethernet/2.5 Gigabit Ethernet/5 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet
Ethernet LAN	Yes
LAN controller	Realtek RTL8126/Realtek RTL8127
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi	Yes
Wi-Fi standards	802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
WLAN controller model	MediaTek MT7927
1st M.2 highest PCI Express generation	5.0
1st M.2 largest key size	2580
2nd M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	2280
3rd M.2 highest PCI Express generation	4.0
3rd M.2 largest key size	2280
4th M.2 highest PCI Express generation	4.0
4th M.2 largest key size	2280
5th M.2 highest PCI Express generation	4.0
5th M.2 largest key size	2280
Number of M.2 (M) slots	5
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	2
ACPI version	5.0
BIOS memory size	512 Mbit
BIOS type	UEFI AMI
Clear CMOS button	Yes
Clear CMOS jumper	Yes
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Battery weight	3 g
Country of origin	Taiwan
Lithium weight per battery	0.07 g
Number of battery cells	1
Package depth	310 mm
Package height	92 mm
Package weight	4380 g
Package width	340 mm
Products per shipping (inner) case	1 pc(s)
Depth	244 mm
Height	35 mm
Width	305 mm
Antenna included	Yes
Batteries included	Yes
Bundled software	Norton® Internet Security (OEM version)
Screws included	Yes
Warranty period	3 year(s)
Weight	3820 g
Model	X870E A MASTER X ICE
Units per Shipping Box	1
Unit Calculated Volume	0.010013 cubm
Unit Calculated Weight	3.8 kg
