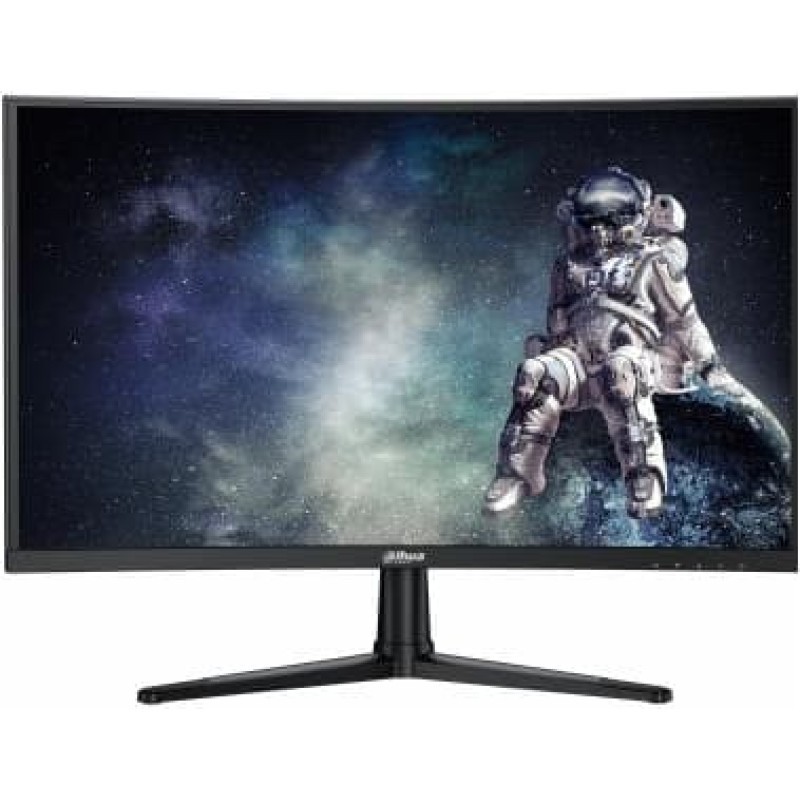

| Summary | Dahua Technology LM24-E240C. Display diagonal: 59.9 cm (23.6"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black |
| Category Code | LC3 |
| CnCode | 85285210 |
| Backlight type | Edge LED |
| Colour depth | 8 bit |
| Colour gamut standard | NTSC |
| Contrast ratio (typical) | 3000:1 |
| Display brightness (typical) | 350 cd/m² |
| Display diagonal | 23.6 " |
| Display diagonal (metric) | 60 cm |
| Display resolution | 1920 x 1080 pixels |
| Display technology | LED |
| HD type | Full HD |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| LED backlight | Yes |
| Maximum refresh rate | 240 Hz |
| Native aspect ratio | 16:9 |
| NTSC coverage (typical) | 85 % |
| Panel type | VA |
| Pixel density | 93.3 ppi |
| Pixel pitch | 0.2716 x 0.2716 mm |
| Response time (MPRT) | 1 ms |
| Screen curvature rating | 1500R |
| Screen shape | Curved |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Surface hardness | 3H |
| Touchscreen | No |
| Viewable size, horizontal | 521.395 mm |
| Viewable size, vertical | 296.285 mm |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |
| AMD FreeSync | No |
| Flicker-free technology | Yes |
| Low Blue Light technology | Yes |
| NVIDIA G-SYNC | No |
| Built-in camera | No |
| Built-in speaker(s) | No |
| Detachable stand | Yes |
| Feet colour | Black |
| Frameless design | Yes |
| Front bezel colour | Black |
| Illuminated stand | No |
| Market positioning | Gaming |
| Product colour | Black |
| Built-in USB hub | No |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Headphone out | Yes |
| Bluetooth | No |
| Wi-Fi | No |
| LED indicators | Status |
| Panel mounting interface | 100 x 100 mm |
| Plug and Play | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 20 ° |
| VESA mounting | Yes |
| Wall mountable | Yes |
| AC adapter output voltage | 12 V |
| Energy consumption (HDR) per 1000 hours | 25 kWh |
| Energy consumption (SDR) per 1000 hours | 17 kWh |
| Energy efficiency class (HDR) | G |
| Energy efficiency class (SDR) | E |
| Energy efficiency scale | A to G |
| Input current | 3 A |
| Power consumption (max) | 34 W |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 24 W |
| Power supply type | External |
| Operating relative humidity (H-H) | 10 - 85 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -20 - 60 °C |
| Bezel width (bottom) | 16.4 mm |
| Bezel width (side) | 3.2 mm |
| Bezel width (top) | 3.2 mm |
| Depth (with stand) | 202.2 mm |
| Depth (without stand) | 90.7 mm |
| Height (with stand) | 414.5 mm |
| Height (without stand) | 320.3 mm |
| Weight (without stand) | 3600 g |
| Width (with stand) | 537.9 mm |
| Width (without stand) | 537.9 mm |
| Package depth | 145 mm |
| Package height | 400 mm |
| Package weight | 4200 g |
| Package width | 623 mm |
| Cables included | DisplayPort |
| Manual | Yes |
| Power adapter included | Yes |
| Stand included | Yes |
| Automatic brightness control | No |
| Compliance certificates | CE/Electromagnetic Compatibility (EMC)/Low Voltage Directive (LVD) |
| Data Sheet (Link) | https://eprel.ec.europa.eu/api/product/2398044/fiches?language=EN |
| Energy efficiency class | E |
| EPREL Registration Number | 2398044 |
| EPREL Version Number | 1 |
| Unit Calculated Volume | 0.036 cubm |
| Product Net Weight | 3.6 kg |
| Unit Calculated Weight | 4.2 kg |
