Ecoflow Bundle of Trina 400W solar panel + EcoFlow balcony holder kit

5 days
ID: 230372
Product Code: 49491-UNIW

177.72€
(Ex Tax: 146.88€)

Leasing


Delivery options

 Imagem    ImagemImagem

The picture is for illustrative purposes only and the actual product may differ from the picture. Notice a mistake? Please let us know.


Description

Bundle of Trina 400W solar panel + EcoFlow balcony holder kit

The EcoFlow kit with Trina panel and balcony hook is an ideal solution for those who want to use solar energy in urban conditions. Thanks to the 400W Trina photovoltaic panel and the balcony mount from EcoFlow, it is possible to install a solar system even on small balconies. This is a practical solution that allows you to reduce your electricity bills and enjoy free solar energy.

Robust construction and easy installation

The kit includes a sturdy balcony bracket measuring 14 x 32 x 1213 mm and all the necessary mounting components, such as pins, clamps and protective washers. The whole set is designed for quick and easy installation. The maximum load of 30 kg and high wind resistance make the installation stable and safe in all weather conditions. The necessary tools are also included, eliminating the need to purchase additional equipment.

Trina 400 W high-efficiency photovoltaic panel

The Trina photovoltaic panel from the Vertex S series is distinguished by its 400 W power output and an efficiency of 21.1%. Thanks to monocrystalline and multi-bay technology, the panel ensures maximum utilization of sunlight and low energy losses. This makes the system work effectively even in less favorable lighting conditions. The panel also features a mechanical performance of up to 6,000 Pa of positive load, and 4,000 Pa of negative load, which guarantees its reliability.

Ideal solution for apartments

Compact dimensions and the ability to be mounted on a balcony railing make the EcoFlow kit with Trina panel a perfect solution for apartments in blocks of apartments. It does not require large space or complicated installation work. The PowerStream system (to be purchased separately) allows you to directly power household appliances and store excess energy in compatible EcoFlow power stations.

Green energy every day

The use of solar energy allows not only to reduce electricity costs, but also to take care of the environment. The EcoFlow kit with Trina panel is a step towards green living and energy independence. It will be ideal for people who want to combine savings with modern technologies in their daily lives.

Included:

  • Trina 400W panel x1
  • EcoFlow balcony mount for 400W photovoltaic panels x1



General

ManufacturerEcoFlow

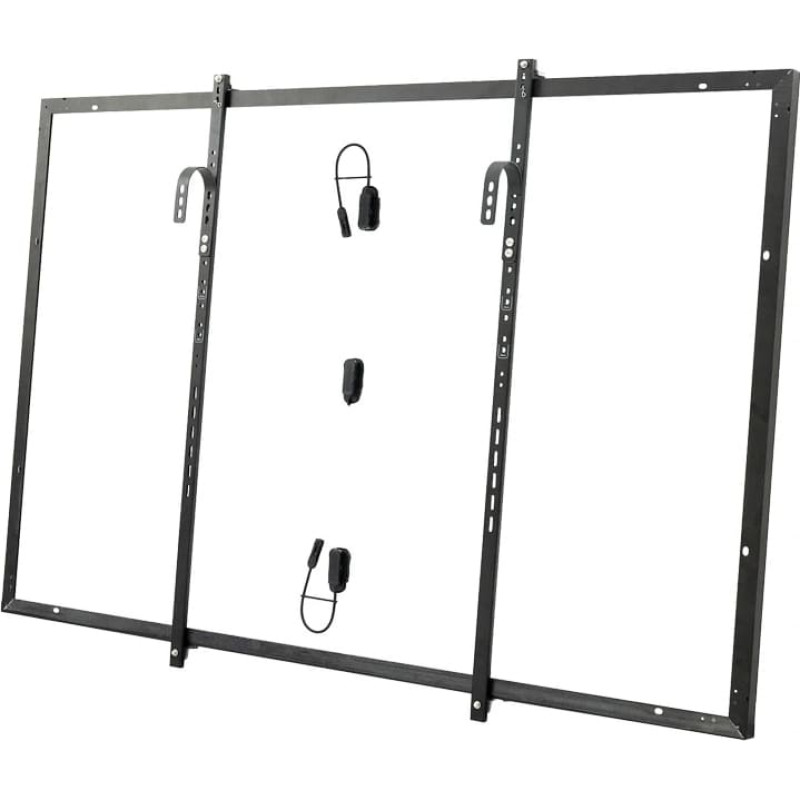

EcoFlow balcony bracket for 400W photovoltaic panels

WeightApprox. 3.2 kg
Max load30 kg
Degree of wind resistance10



Trina 400W panel (Electrical data [STC])

Peak power-P MAX (Wp)*390 - 395 - 400 - 405
Power tolerance-P MAX (W)0~ +5
Voltage of maximum power-VMPP (V)33.8 - 34.0 - 34.2 - 34.4
Current of maximum power-IMPP (A)11.54 - 11.62 - 11.70 - 11.77
Open circuit voltage-VOC (V)40.8 - 41.0 - 41.2 - 41.4
Short-circuit current-ISC (A)12.14 - 12.21 -12.28 - 12.34
Module efficiency ηm (%)20.3 - 20.5 - 20.8 - 21.1



Trina 400W panel (Electrical data [NOCT])

Maximum power-P MAX (Wp)295 - 298 - 302 - 306
Maximum power-VMPP voltage (V)31.8 - 32.0 - 32.2 - 32.5
Current of maximum power-IMPP (A)9.26 - 9.32 - 9.38 - 9.41
Open circuit voltage-VOC (V)38.4 - 38.6 - 38.8 - 38.9
Short-circuit current-ISC (A)9.78 - 9.84 - 9.90 - 9.95



Trina 400W panel (Mechanical data)

Solar cellsMonocrystalline
Number of cells120 cells
Module dimensions1754 ×1096×30 mm (69.06×43.15×1.18 inches)
Weight21.0 kg (46.3 lb)
Glass3.2 mm (0.13 in),High transmission, AR coating on heat strengthened glass
Material encapsulantEVA/POE
Back sheetWhite
Frame30 mm (1.18 in) anodized aluminum
Junction boxIP 68 class
CablesPhotovoltaic technology cable 4.0 mm (0.006 in), Portrait: 280/280 mm(11.02/11.02 inches), Length can be customized
ConnectorMC4 EVO2 / TS4



Trina 400W panel (Temperature ratings)

NOCT (Nominal Operating Temperature of the Cell).43°C (±2°C)
PMAX temperature coefficient- 0.34%/°C
Temperature coefficient VOC- 0.25%/°C
Temperature coefficient ISC0.04%/°C



Trina 400W panel (Maximum ratings)

Operating temperature-40~+85ºC
Maximum system voltage1500V DC (IEC), 1500V DC (UL)
Maximum series fuse voltage20A
