Asus PRO A620M-DASH-CSM - Socket AM5 - motherboard

ASUS

Asus PRO A620M-DASH-CSM - Socket AM5 - motherboard

15 days
ID: 194998
Product Code: 90MB1GD0-M0EAYC
110.74€
(Ex Tax: 91.52€)
Leasing


Delivery options

 Imagem    ImagemImagem

Description
Related products

The picture is for illustrative purposes only and the actual product may differ from the picture. Notice a mistake? Please let us know.

Description

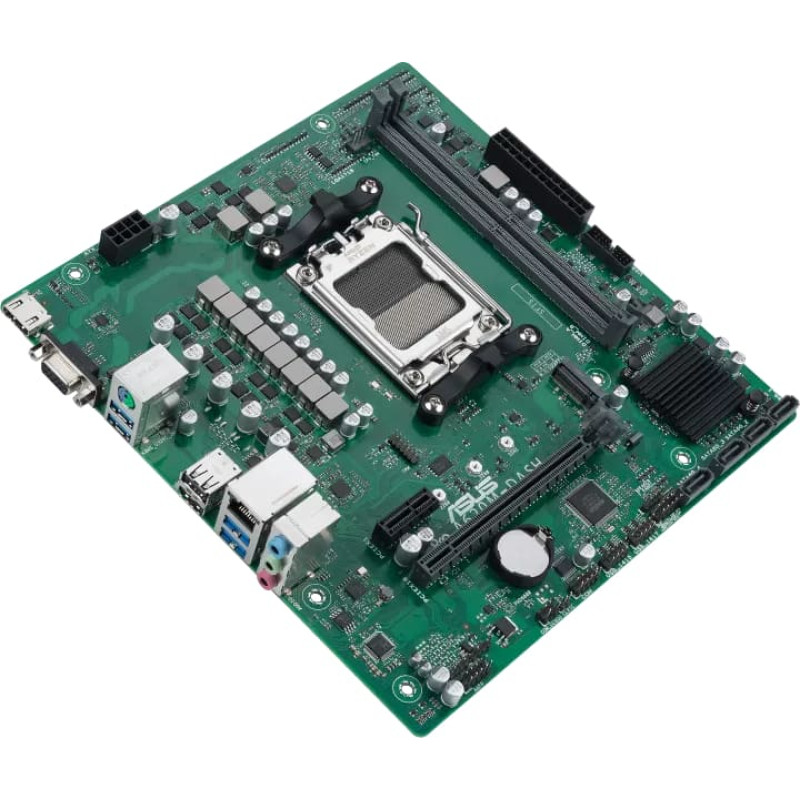

The ASUS PRO A620M-DASH-CSM mainboard is based on the AMD A620 chipset and supports AMD processors for the AM5 socket. It has two DDR5 DIMM slots in dual-channel operation for up to 96 GB RAM. The ASUS PRO A620M-DASH-CSM also features a PCIe 4.0 x16 slot and a PCIe 3.0 x1 slot. The PRO A620M-DASH-CSM also has 8-channel sound, a Gigabit LAN interface, four SATA3 ports, an M.2 port and a range of USB ports. This board has various features for use in business environments. Item no.: 100020033


Mainboard type
color green
EAN4711387311363
Manufacturer No. 90MB1GD0-M0EAYC
Socket AM5
Max. supported CPUs 1
Operating system support Windows 10 ready, Windows 11 ready
Processor Supported Models Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 8xxxG (Phoenix), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 7 8xxxG (Phoenix), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael)
Chipset AMD A620
Slots PCIe x16 1x (of which: 1x PCIe x16)
TPM Yes
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form factor µATX
Use PC
Power supply ATX12V (24-pin + 8-pin)
Maximum storage 96 GB
Connections (external) Mouse/Keyboard Combo (PS/2) 1
Connectors (internal) SATA 4
Ports (optional) USB 3.2 Gen 1 (5 Gbit/s) 2
SATA controller AMD A620
directly usable RAID levels 0, 1, 10
USB Controller AMD A620
Onboard graphics The graphics ports on the mainboard can only be used when using a CPU with an integrated graphics chip.
Sound Realtek 7.1 Surround Sound
LAN Realtek 1Gb Ethernet
Further information Asus Self-recovering BIOS, Asus Secure Boot, moisture-resistant coating for use in harsh environments, suitable for 24/7 operation
Accessories available 2x SATA cable, I/O shield, screw set for M.2 SSD, instructions
Dimensions Width: 221 mm x Height: 226 mm

Weight0.95
Height55
Length270
Width260
