Home Computer equipment Routers, network equipment Switches Ubiquiti USW-PRO-48-POE | Switch | UniFi, 40x RJ45 1000Mb/s PoE+, 8x RJ45 1000Mb/s PoE++, 4x SFP+, 600W
Ubiquiti USW-PRO-48-POE | Switch | UniFi, 40x RJ45 1000Mb/s PoE+, 8x RJ45 1000Mb/s PoE++, 4x SFP+, 600W

Ubiquiti USW-PRO-48-POE | Switch | UniFi, 40x RJ45 1000Mb/s PoE+, 8x RJ45 1000Mb/s PoE++, 4x SFP+, 600W

Availability: Out Of Stock
ID: 170975
Product Code: USW-PRO-48-POE-EU
1,117.85€
(Ex Tax: 923.84€)

Delivery options

      Imagem ImagemImagem

Description
Related products

Description

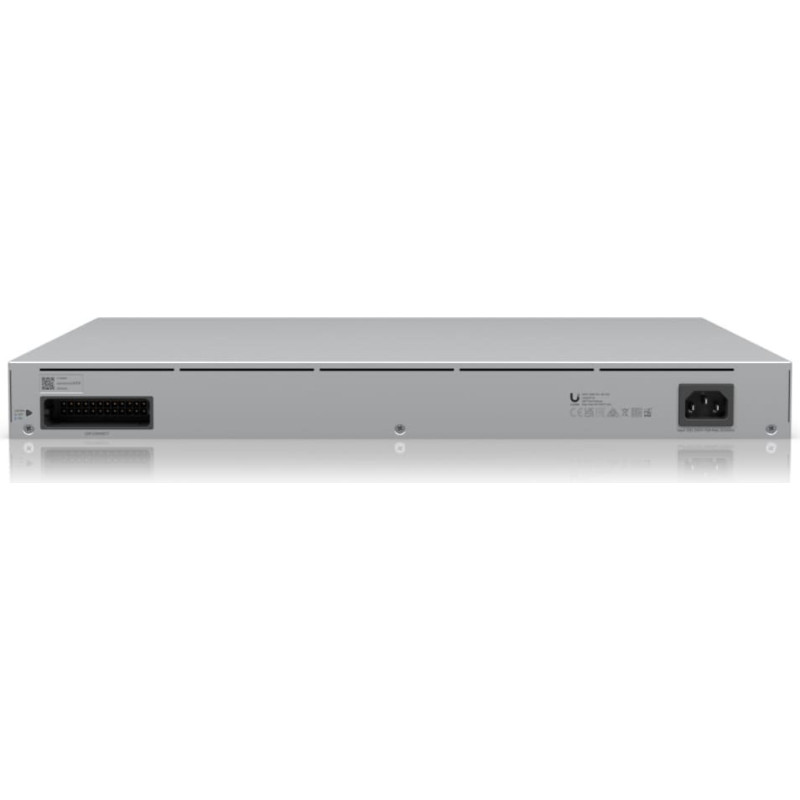

Ubiquiti USW-PRO-48-POE

USW-Pro-48-POE is a configurable Gigabit Layer2 and Layer3 switch with automatic 802.3at PoE+ and 802.3bt PoE++ detection. Forty PoE+ Ethernet ports and eight PoE+++ RJ45 Ethernet ports have a total 600W PoE budget and four SFP+ ports offer 10Gbps uplink options. Nearly completely silent cooling and 1.3" LCM touch screen.

1

UniFi OS Console

The switch is managed and configured by the UniFi network OS Console. The UniFi network OS Consoleand the mobile application allow administrators to configure and monitor virtually all switching functions from anywhere in the graphical user interface.

2

Example of implementation


Functions via the UniFi OS Console

Functions via the UniFi OS Console

  • Operating mode (switching, mirroring, aggregation) per port
  • Network / VLAN configuration
  • Jumbo Frame and Flow Control services
  • Network settings
  • Storm control on port
  • Configuration of the spanning tree
  • Control 802.1X and RADIUS VLAN
  • Option to debug the command line interface


LAN standardGigabit Ethernet 10/100/1000 Mb/s
Number of LAN ports48x [10/100/1000M (RJ45)]
Number of LAN ports4x [10G (SFP+)]
Number of PoE ports40x [802.3af/at (1G)]
Number of PoE ports8x [802.3bt (1G)]
10G supportYes
AC input frequency50/60
AC input voltage100 - 240
Authentication typeIEEE 802.1x,RADIUS
Auto MDI/MDI-XYes
Auto-sensingYes
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
CertificationCE, FCC, IC
DC input voltage44 - 57
Depth399.6
DHCP featuresDHCP server
Flow control supportYes
Form factor1U
Forwarding rate130.944
Full duplexYes
Harmonized System (HS) code85176990
Height43.7
Input current11.54
Installed SFP+ modules quantity4
Jumbo frames supportYes
LED indicatorsActivity, Link, PoE, Speed, System
ManagementCLI - Command Line Interface
ManagementBy web browser
Networking standardsIEEE 802.3af,IEEE 802.3at
Number of power supply units1
Operating relative humidity (H-H)10 - 90
Operating temperature (T-T)-5 - 40
Port mirroringYes
Power (W)600
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) power per port64
Power over Ethernet plus (PoE+) ports quantity40
Power supply includedYes
Product colourSilver
Rack mountingYes
Spanning tree protocolYes
Static routeYes
Switch layerL2/L3
Switch typeManaged
Switching capacity176
Switching layer2
Throughput88000
Total Power over Ethernet (PoE) budget600
Type of caseRack (1U)
VLAN supportYes
Weight6.25
Width442.4


Weight(kg)7.97
Length(mm)250.00
Width(mm)340.00
Height(mm)100.00
