Aten PE0212G energosadales vienība, PDU 12 Maiņstrāvas izvade (-s) 1U Melns

15 days
ID: 282415
Product Code: PE0212G-AT-G
Brand: ATEN

67.74€
(Ex Tax: 55.99€)

Leasing


Delivery options

 Imagem    ImagemImagem

The picture is for illustrative purposes only and the actual product may differ from the picture. Notice a mistake? Please let us know.


Description

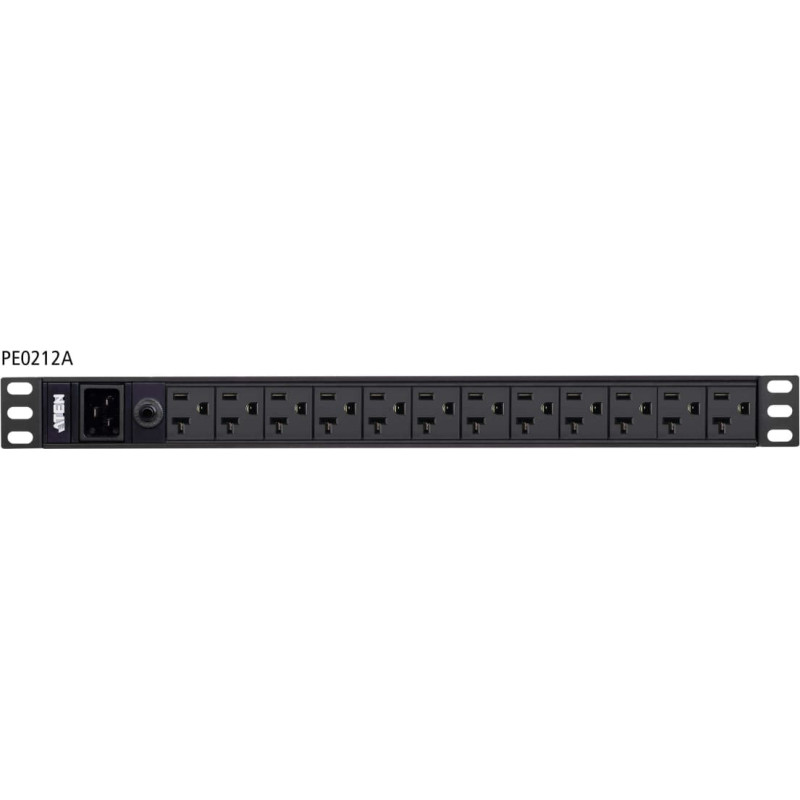

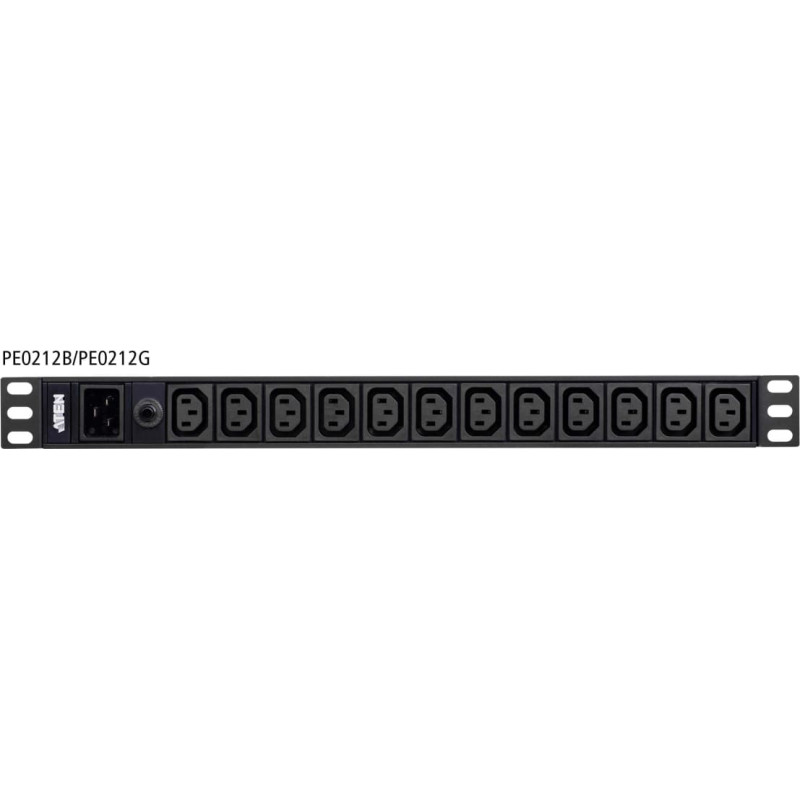

The PE0212 series Basic PDU contains 12 AC outlets and is available in IEC or NEMA socket configurations. The PE0212 series Basic PDU features a space-saving 1U design that allows it to be mounted vertically on the outside of a rack, resulting in a more effi cient use of space in the server room, while providing 12 AC outlets.
1x Basic PDU
1x LIN2-314K-P42G Power cord
1x User Instructions

PDU typesBasic
Rack capacity1U
TypeSingle-phase
Housing materialAluminium
Product colourBlack
AC outlets quantity12 AC outlet(s)
AC outlet typesC13 coupler
Power plugC20 coupler
Nominal input voltage100 - 240 V
Maximum current16 A
AC input frequency50 / 60 Hz
Load capacity3840 VA
Power protection featuresOver current
Compliance certificatesRoHS
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating altitude0 - 3000 m
Width488 mm
Depth44 mm
Height45 mm
Weight1.3 kg
Package weight1.49 kg
Package width112 mm
Package depth697 mm
Package height82 mm
Master (outer) case net weight13 kg
Master (outer) case width595 mm
Master (outer) case length710 mm
Master (outer) case height188 mm
Master (outer) case gross weight14.9 kg
Products per master (outer) case10 pc(s)
